Hydraulic Hose: Service and Repair

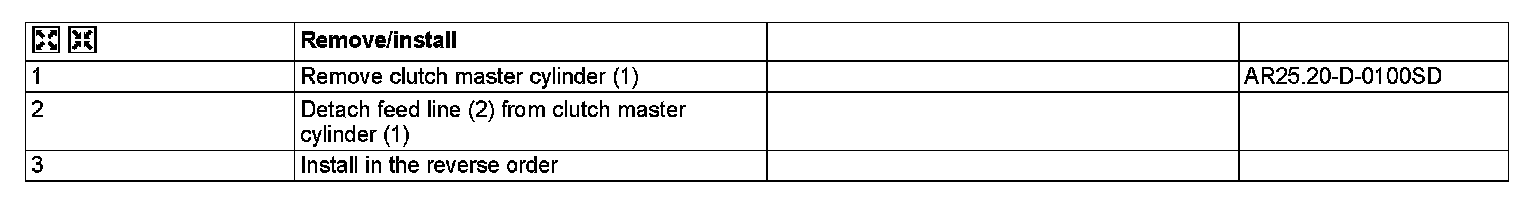

AR25.20-D-0101SD Remove/Install Feed Line On Master Cylinder

MODEL 906
- with TRANSMISSION 711.6

MODEL 8AC906.133 /153 /155 /631 /633 /635 /655 /657
- with TRANSMISSION 710.510
- with CODE (ZL3) National version for Latin America

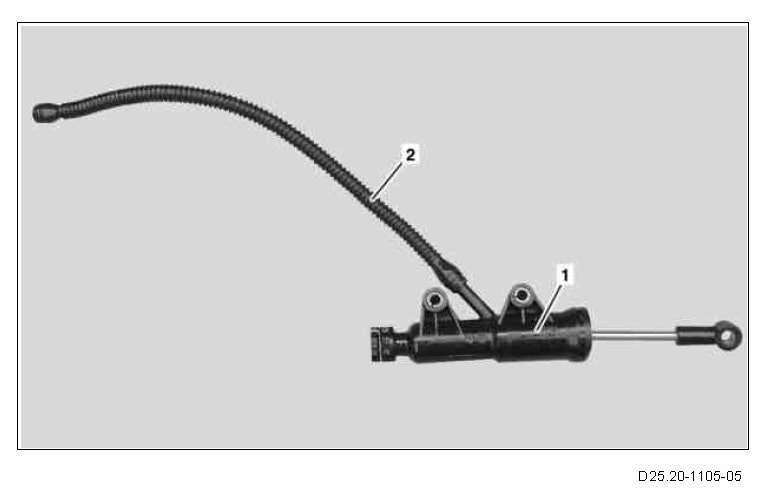

1 Clutch master cylinder
2 Feed line
