AR27.19-D-0210A Remove/Install Electrohydraulic Controller Unit (Transmission Removed)

AR27.19-D-0210A Remove/Install Electrohydraulic Controller Unit (Transmission Removed)


TRANSMISSION 722.683 /684 /685 /686 in MODEL 906

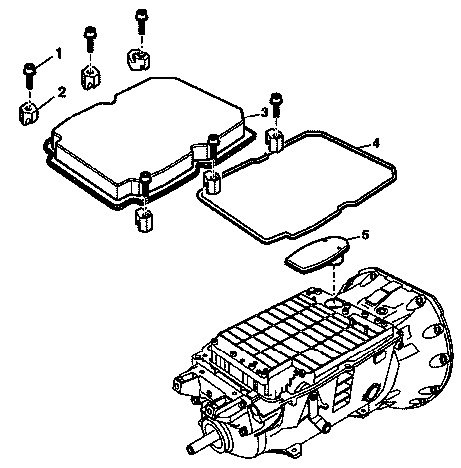

1 Screw
2 Sprag
3 Oil pan
4 Gasket
5 Oil filter





6 Screw
7 Washer
8 Electrohydraulic controller unit
9 Selector valve
10 Detent plate














116 589 06 59 00
Assembly stand





140 589 34 63 00
Support plate
