AR27.60-D-0950A Remove/Install Park Pawl Mechanism

AR27.60-D-0950A Remove/Install Park Pawl Mechanism


- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

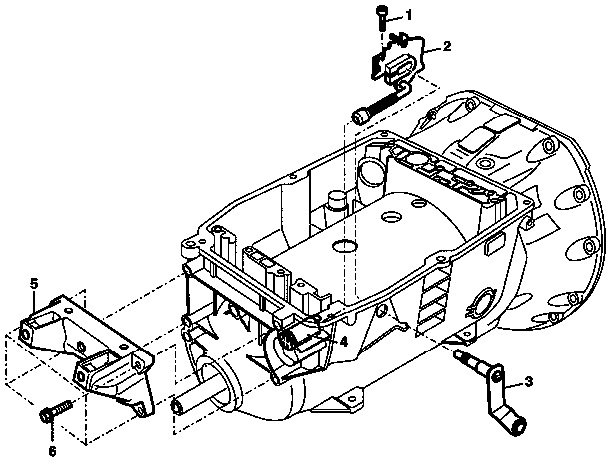

1 Screw
2 Detent plate
3 Range selector lever
4 Pilot bushing

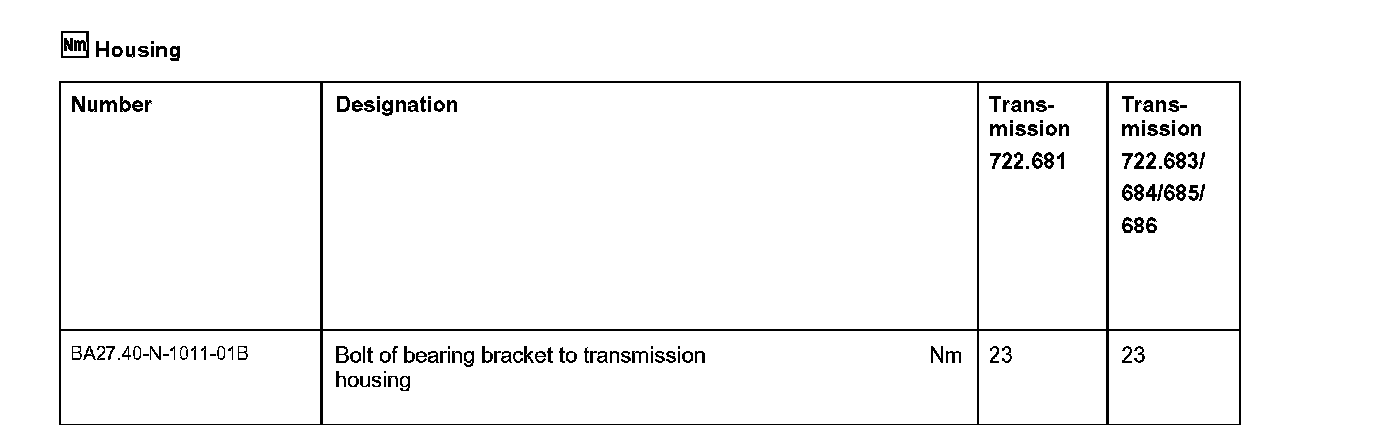

5 Bearing bracket
6 Screw

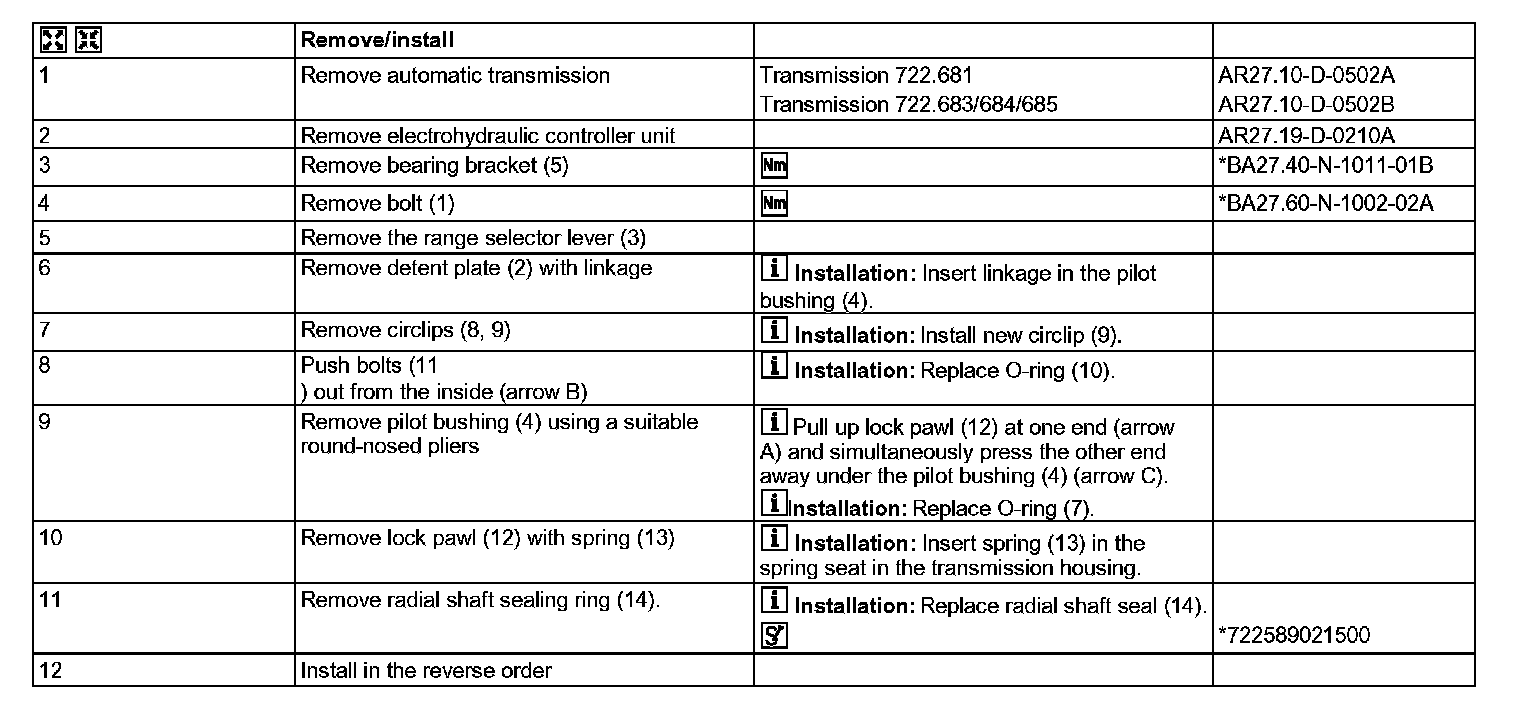

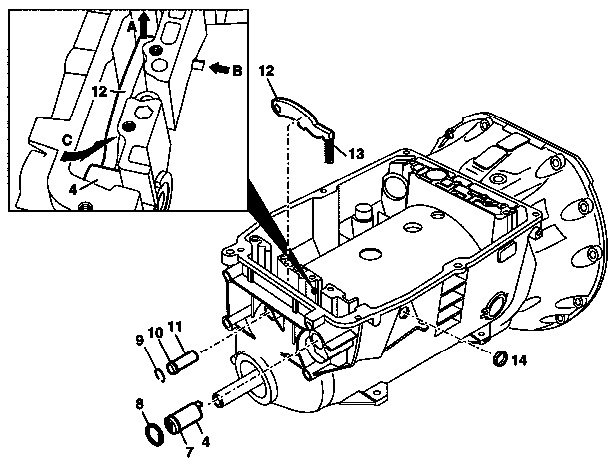

4 Pilot bushing
7 O-ring
8 Retaining ring
9 Retaining ring
10 O-ring
11 Pin
12 Locking pawl
13 Spring
14 Radial shaft seal














722 589 02 15 00
Drift
