AR27.60-D-0901B Remove/Install Electronic Selector Lever Module (ESM)

AR27.60-D-0901B Remove/Install Electronic Selector Lever Module (ESM)
- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.686 in MODEL 906.1 /2 /6 /7

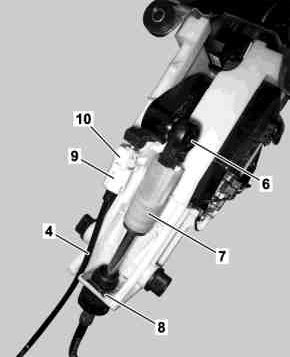

1 Electronic selector lever module (EWM)
2 Screw
3 Selector lever Bowden cable
4 Parking shift lock Bowden cable
5 Electrical connector
6 Ball head
7 Sliding piece
8 Locking plate
9 Sleeve
10 Lug
