AR27.60-D-0100-02C Unhook/Hook Up Selector Lever Bowden Cable on Transmission

AR27.60-D-0100-02C Unhook/Hook Up Selector Lever Bowden Cable on Transmission
TRANSMISSION 722.683/684/685\686











1 Unscrew bolts (1) and remove cover (2).
With engine 272.979

2 Remove ball head (4) from transmission.

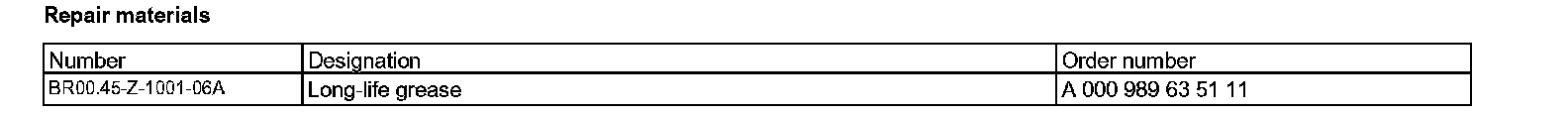

Installation: Grease ball head (4).

3 Unlock retainer (3) and remove selector Bowden cable (5) from transmission.
4 Install in the reverse order.

Shown on engine 272.979 with transmission 722.685
