AR27.51-D-0800B Disassemble/Assemble K1 Clutch

AR27.51-D-0800B Disassemble/Assemble K1 Clutch


- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7





Shown on transmission 722.681

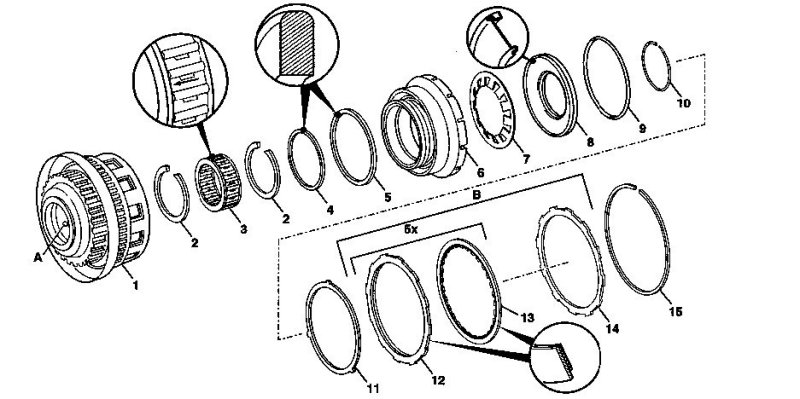

1 External plate carrier K1
2 Circlip
3 Freewheel
4 External plate carrier seal ring
5 Piston seal ring
6 Piston K1
7 Disk spring
8 Spring cup
9 Seal ring (spring cup)
10 Circlip
11 Disk spring
12 External plate (2.07 mm) (a different number of externally toothed plates are fitted depending on the transmission version)
13 Internally toothed plate (a different number of internally toothed plates are fitted depending on the transmission version)
14 Externally toothed disk (4.0 mm)
15 Circlip

A Oil pressure bore
B Disk pack K1





10 Circlip
Assembly device











140 589 13 43 00
Assembly tool





208 589 00 21 00
Thrust device
