AR27.50-D-0781A Remove/Install Multi-Disk Brake B2, Disk Pack B3 and Park Pawl Gear

AR27.50-D-0781A Remove/Install Multi-disk Brake B2, Disk Pack B3 and Park Pawl Gear


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7





Shown on transmission 722.681

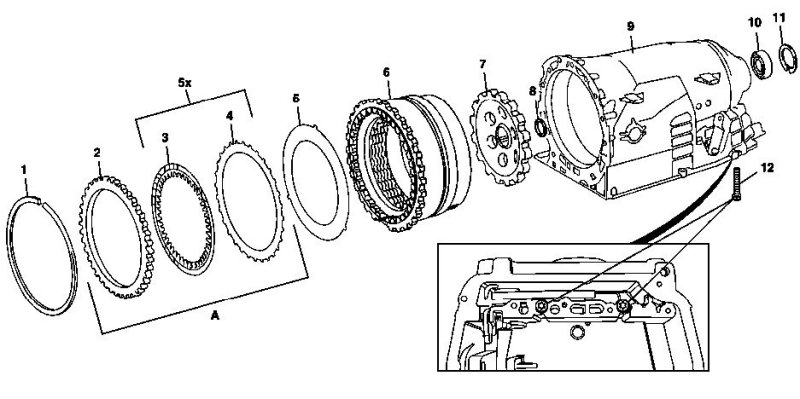

1 Retaining ring
2 External plate (6.5 mm)
3 Internally toothed plate (a different number of internally toothed plates are fitted depending on the transmission version)
4 Externally toothed disk (1.8 mm) (a different number of externally toothed plates are fitted depending on the transmission version)
5 Disk spring
6 Multidisk brake B2
7 Park pawl gear
8 Shim
9 Transmission housing
10 Grooved ball bearing
11 Retaining ring
12 Screw

A Disk pack B3





6 Multidisk brake B2
9 Transmission housing
13 Bore
