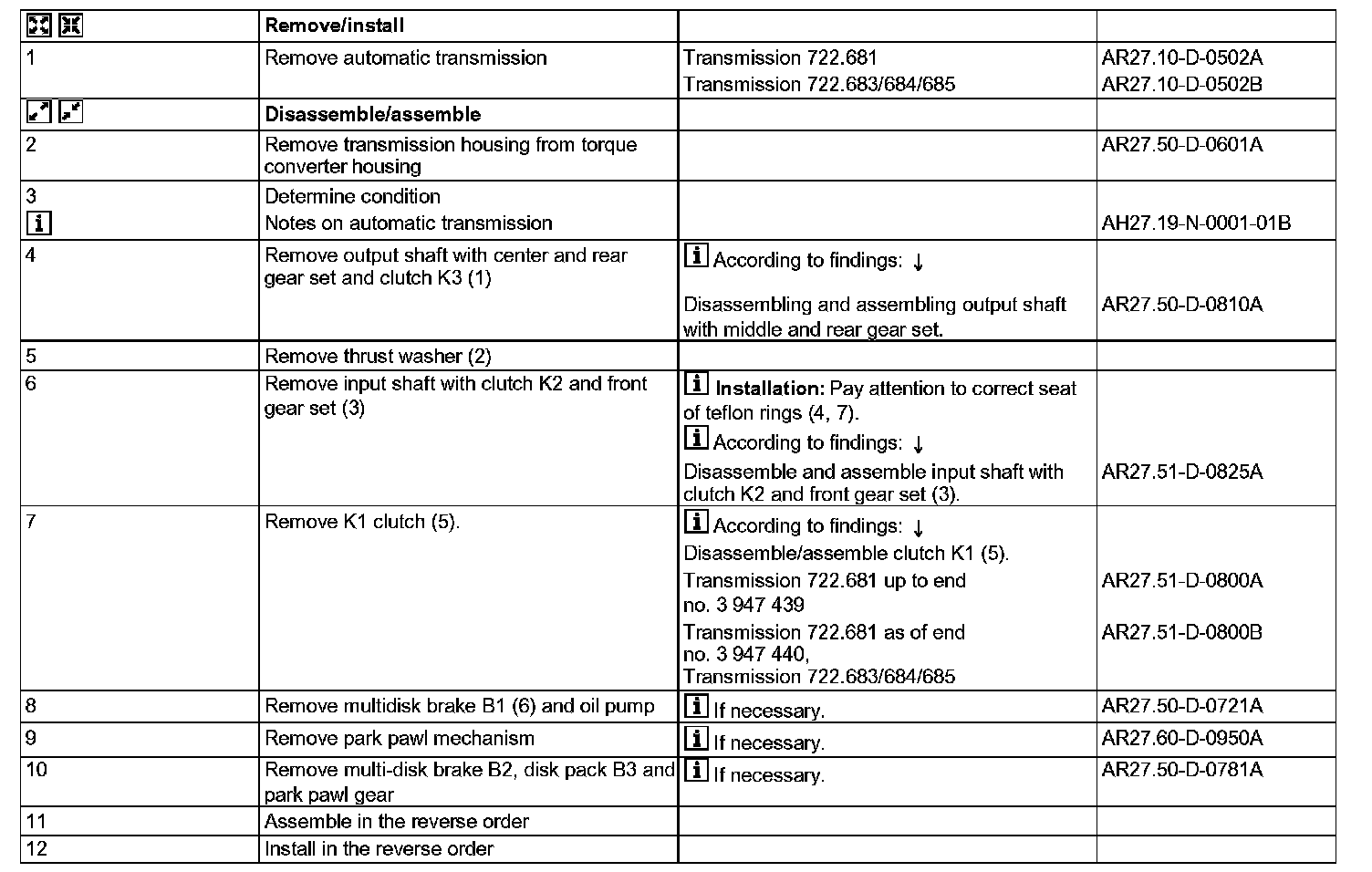

AR27.50-D-0603A Disassemble the Transmission Into Its Main Components

AR27.50-D-0603A Disassemble the Transmission Into Its Main Components


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

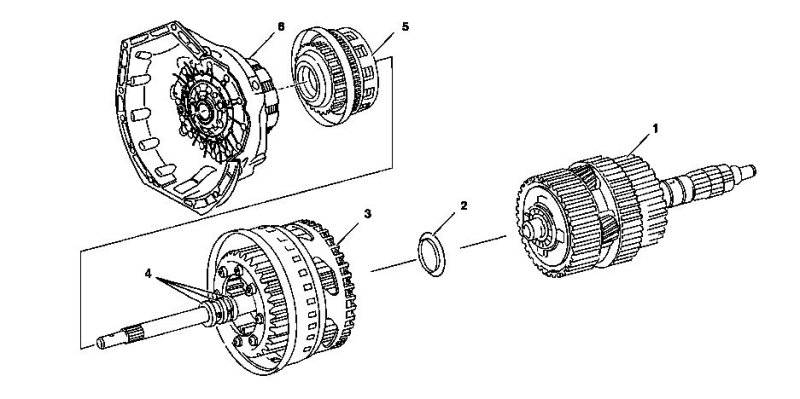

1 Output shaft with center and rear gear set and clutch K3
2 Thrust plate
3 Drive shaft with clutch K2 and front gear set
4 Teflon rings
5 Clutch K1

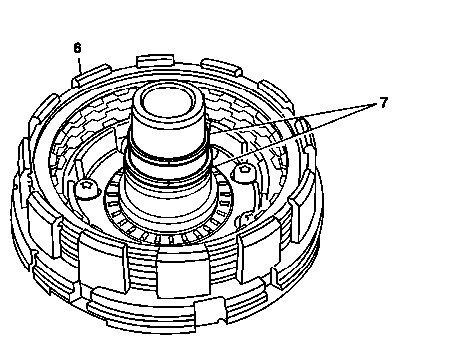

6 Multidisk brake B1





6 Multidisk brake B1
7 Teflon rings
