Fluid Pump: Service and Repair

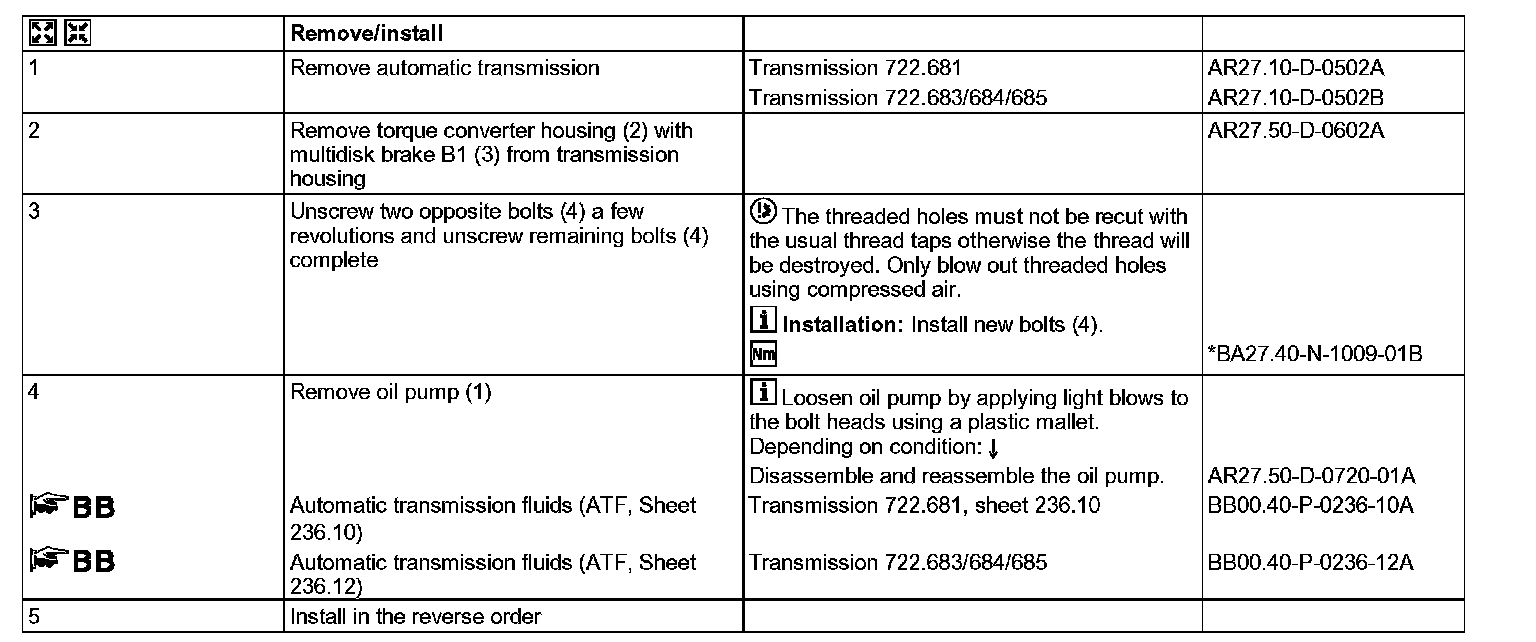

AR27.10-D-0400A Remove/Install Oil Pump


- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

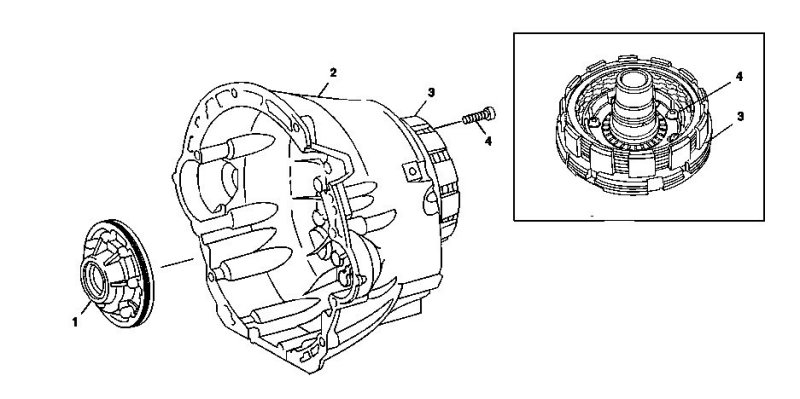

1 Oil pump
2 Torque converter housing
3 Multidisk brake B1
4 Screw
