Fluid Line/Hose: Service and Repair

AR27.10-D-0502-01B Remove/Install Lines At Automatic Transmission
- TRANSMISSION 722.683/684/685

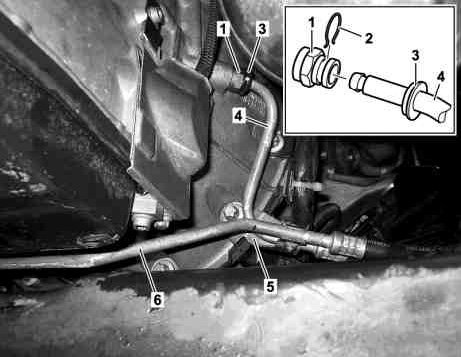

1 Remove bracket (5) from automatic transmission.
2 Remove oil lines (4, 6) from transmission connection fitting (1) and bind away to one side.

Detach circlips (3) and remove retaining springs (2).

Installation: Install retaining spring (2) before installing oil lines (4, 6) on the transmission connection fitting (1).








3 Remove brackets (7, 8) from automatic transmission,.

Different brackets may be fitted depending on the version.

4 Install in the reverse order.
