AR27.00-D-0200-01A Drain Transmission Oil From Torque Converter and Transmission

AR27.00-D-0200-01A Drain Transmission Oil From Torque Converter and Transmission
- TRANSMISSION 711.683/684/685/686














651 589 00 40 00
Counterholder





906 589 00 03 00
Ratchet box wrench





906 589 08 63 00
Drain plate

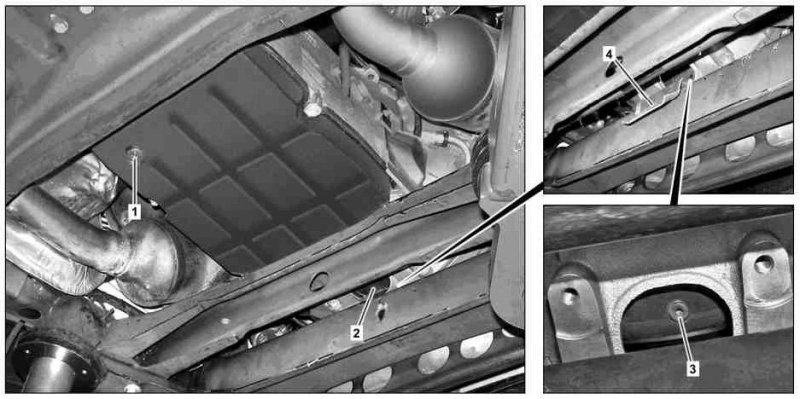

1 Remove plug (2).
2 Crank engine at crankshaft, until the oil drain screw (3) can be accessed through the opening on the transmission.

For transmission 722.686, crank crankshaft using counterholder.

3 Position drain plate (4) under the oil drain screw (3).
4 Remove oil drain screw (3) with ratchet-ring wrench and drain gear oil from torque converter.

Collect gear oil in a suitable container.

5 Remove oil drain screw (1) and drain gear oil from oil pan.

Collect gear oil in a suitable container

6 Tighten oil drain screw (1).

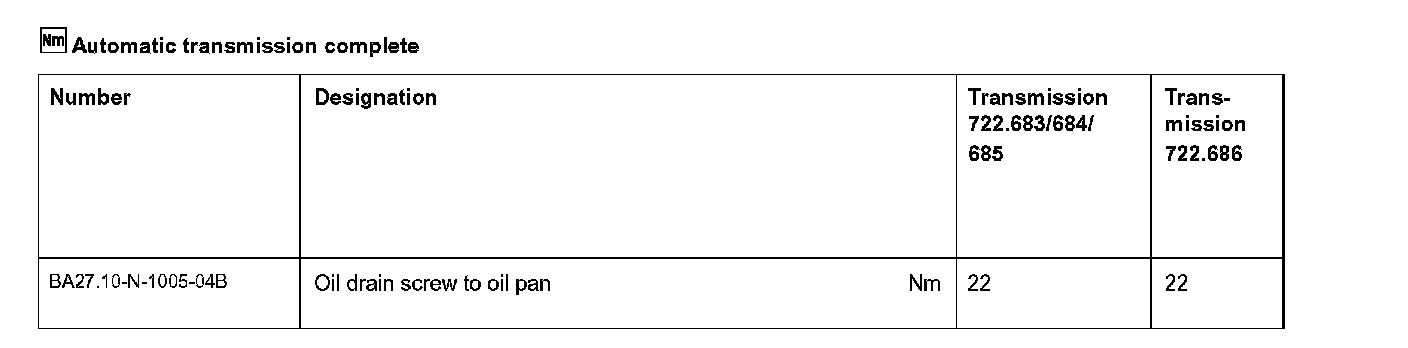

Replace sealing ring. Observe tightening torque for oil drain screw (1). Clean drain position using rags.

7 Remove drain plate (4).
8 Tighten oil drain screw (3) using ratchet-ring wrench

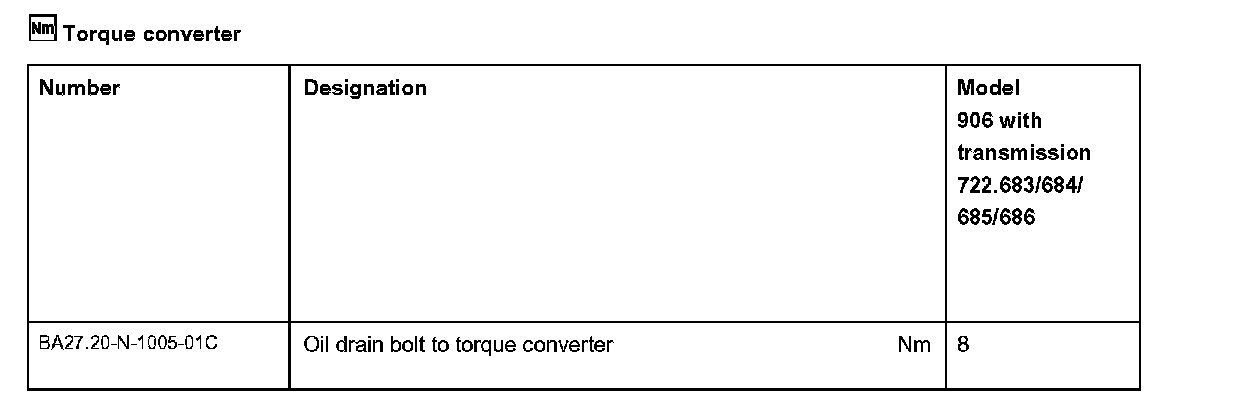

Replace sealing ring. Observe tightening torque for oil drain screw (3). Clean drain position using rags.
