GF27.10-D-3020H Function of Locking of Selector Lever Position "P"

GF27.10-D-3020H Function of Locking of Selector Lever Position "P"
- TRANSMISSION 722.6

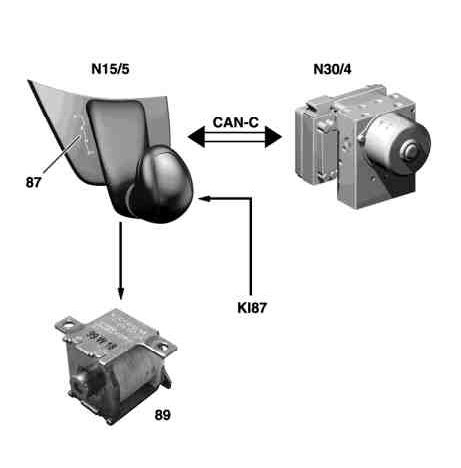

87 Selector lever system of symbols
89 R/P locking solenoid

N15/5 EWM control unit
N30/4 ESP control unit

One of the functions of the shift lock is to lock the selector lever in position "P". The selector lever is locked electronically. The selector lever remains blocked in position "P" when the brake is not operated and the EWM control unit is not supplied with voltage via terminal 87.

As of "terminal 15 ON" the EWM control unit actuates the R/P locking solenoids when the brake pedal is operated and when selector lever position "P" is detected. The R/P locking solenoid enables the selector lever and thus enables a shift out of selector lever position "P".
