GF27.10-D-0001-08H Automatic Transmission (AT), Location of Electric/Electronic Components



GF27.10-D-0001-08H Automatic Transmission (AT), Location of Electric/Electronic Components

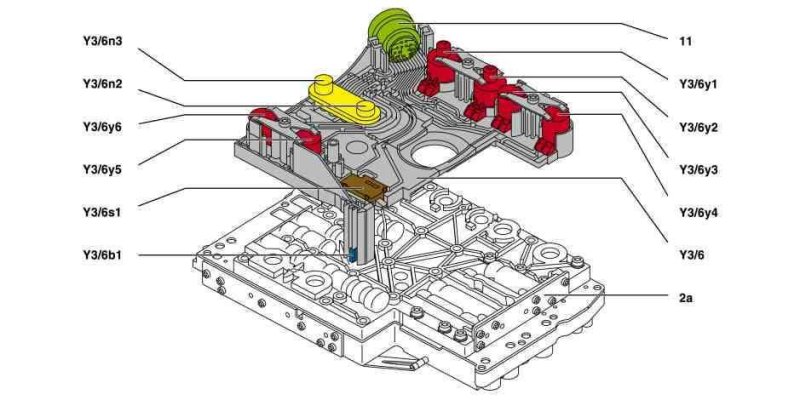

- TRANSMISSION 722.6





2a Shift plate
11 Connector

Y3/6 Electrical control unit
Y3/6b1 Transmission oil temperature sensor
Y3/6n2 RPM sensor 2
Y3/6n3 RPM sensor 3
Y3/6s1 Starter lockout contact
Y3/6y1 Modulating pressure control solenoid valve
Y3/6y2 Shift pressure control solenoid valve
Y3/6y3 1-2 and 4-5 shift solenoid valve
Y3/6y4 3-4 shift solenoid valve
Y3/6y5 2-3 shift solenoid valve
Y3/6y6 Torque converter lockup PWM solenoid valve
