Removal and Replacement

AR27.50-D-0602A Remove/Install Torque Converter Housing and Multi-disk Brake B1 From Transmission Housing


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

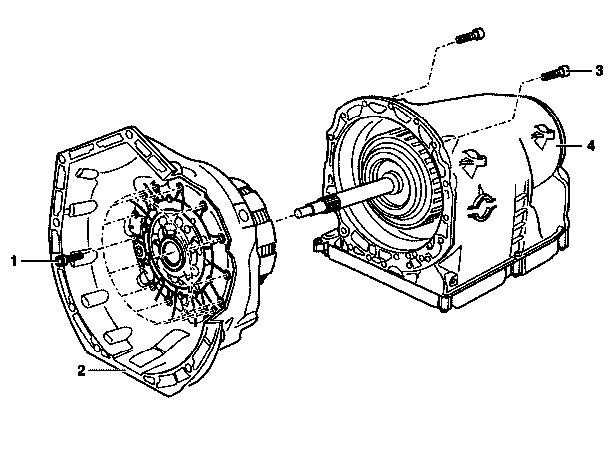

1 Screw
2 Torque converter housing
3 Screw
4 Transmission housing














126 589 01 62 00
Grab handle
