A/T - Limp-Home Mode And DTC 0002 'Undervoltage' Stored

ESM (electronic selector lever module) fault 0002 "Undervoltage"

Topic number LI27.60-N-048766

Version 1

Design group 27.60 Gearshift, control

Date 02-01-2010

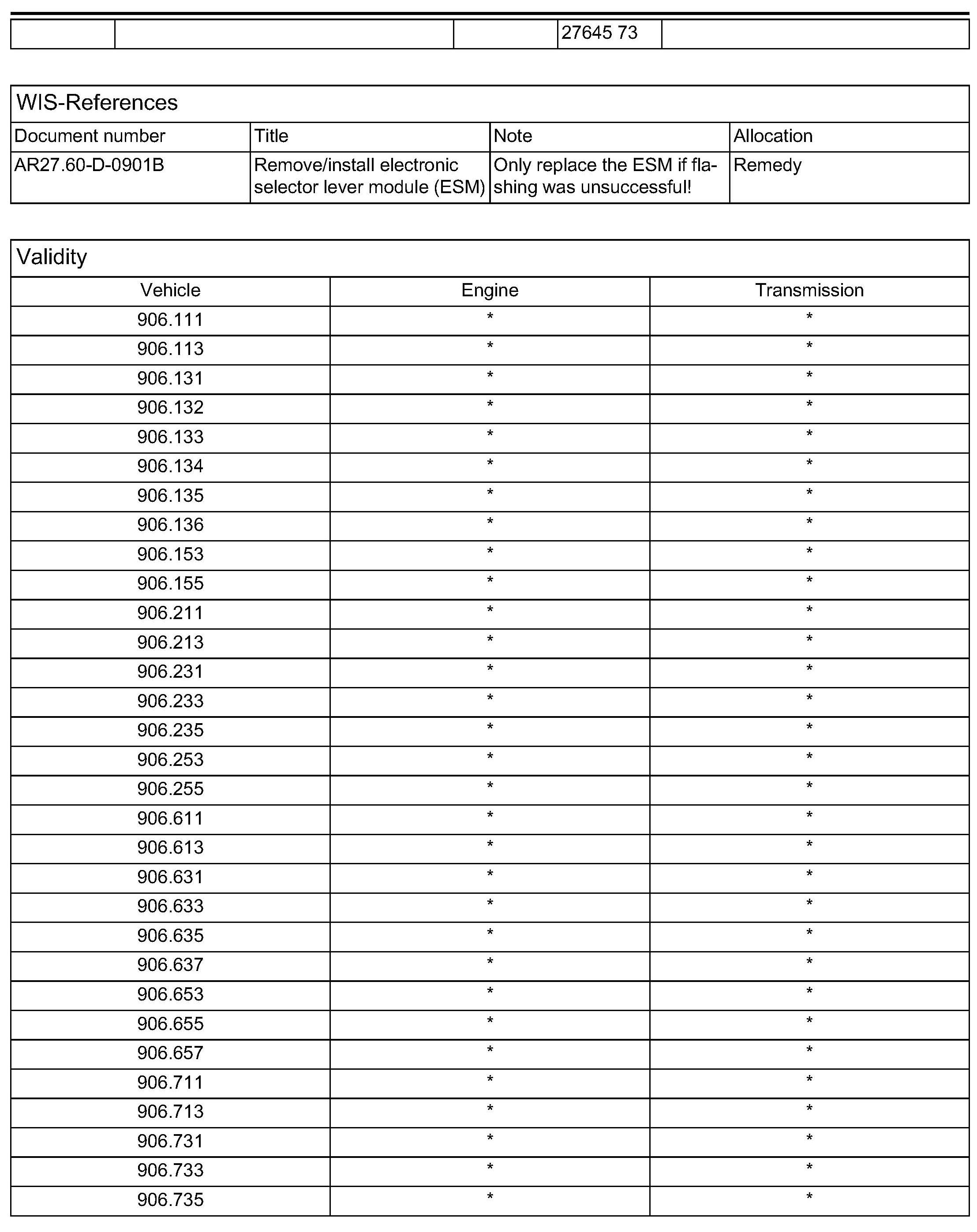

Validity Sprinter model designation 906 with code G40

Reason for change Extended for MBUSA

Reason for block

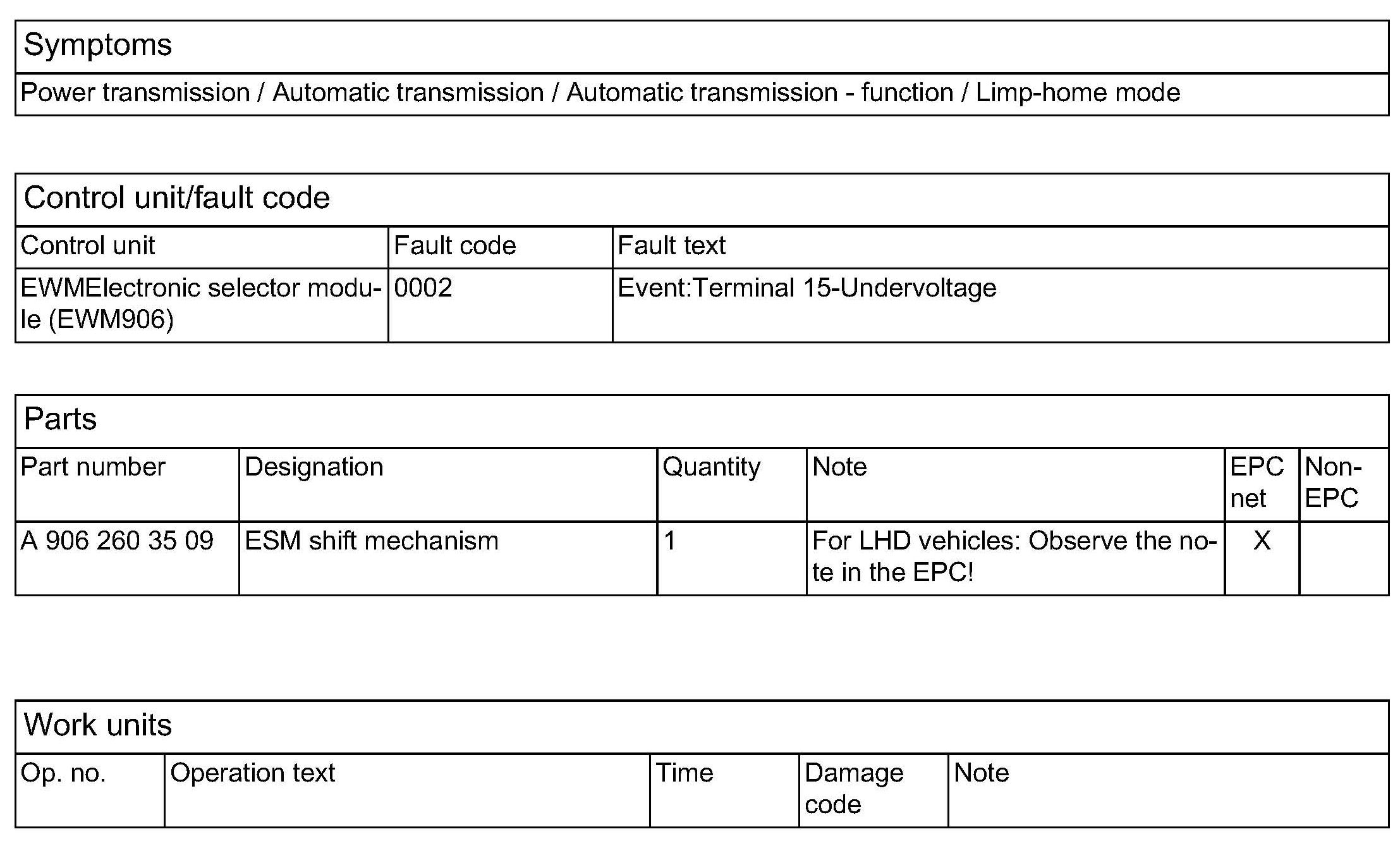

Complaint:
The vehicle enters limp-home mode and has stored the fault 0002 "Undervoltage" in the ESM control module.

Cause:
The undervoltage fault is stored as an event in the ESM control module and causes the automatic transmission to enter limp-home mode.

Remedy:
Check and, if necessary, process possible causes and remedies as described in the DAS.








Load new software for the ESM control unit.
