Trailing Arm: Adjustments

AR35.15-D-0201H Adjust Bar Link
REAR AXLE 741.412 /415 in MODEL 906.13 /23 /63 /73
- with CODE (PL9) Air suspension, VB-Airsuspension company
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
- with CODE (PL9) Air suspension, VB-Airsuspension company

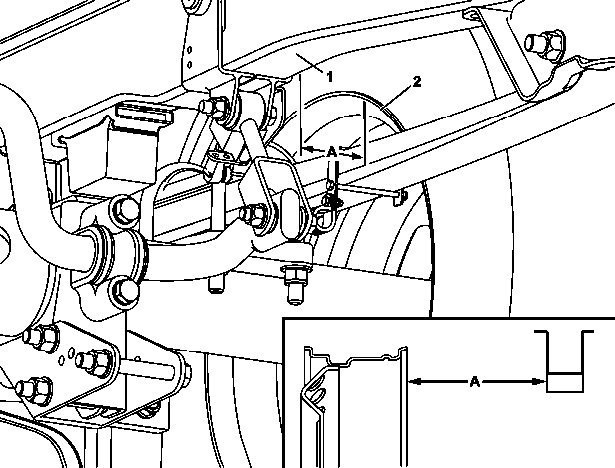

Shown on vehicle 906.15

1 Longitudinal frame member
2 Rim flange

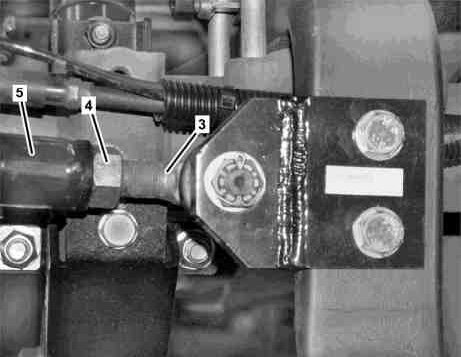

Illustrated on model 906.13

3 Ball joint
4 Nut
5 Bar link
