AR32.20-D-0230H Remove/Install Rear Spring

AR32.20-D-0230H Remove/Install Rear Spring
-
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- except CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- except CODE (PL9) Air suspension, company VB-Airsuspension

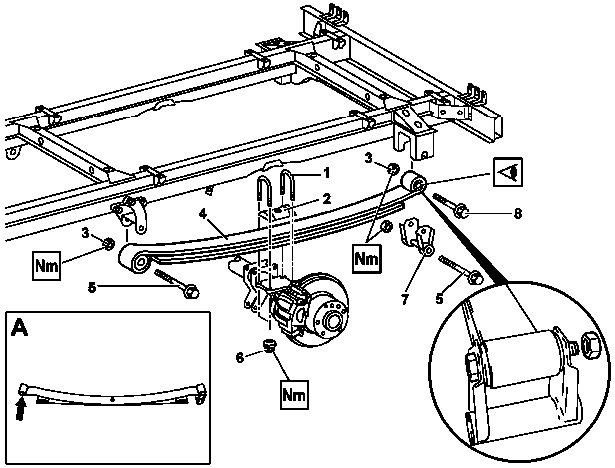

1 Spring U-bolt
2 Spring plate
3 Nuts
4 Rear spring
5 Screw
6 Nut
7 Spring shackle
8 Screw

A Installation position of rear spring





9 Link rod (with code (LG0) Bi-xenon headlamp or (LG1) Bi-xenon headlamp with cornering lights)
