Procedures

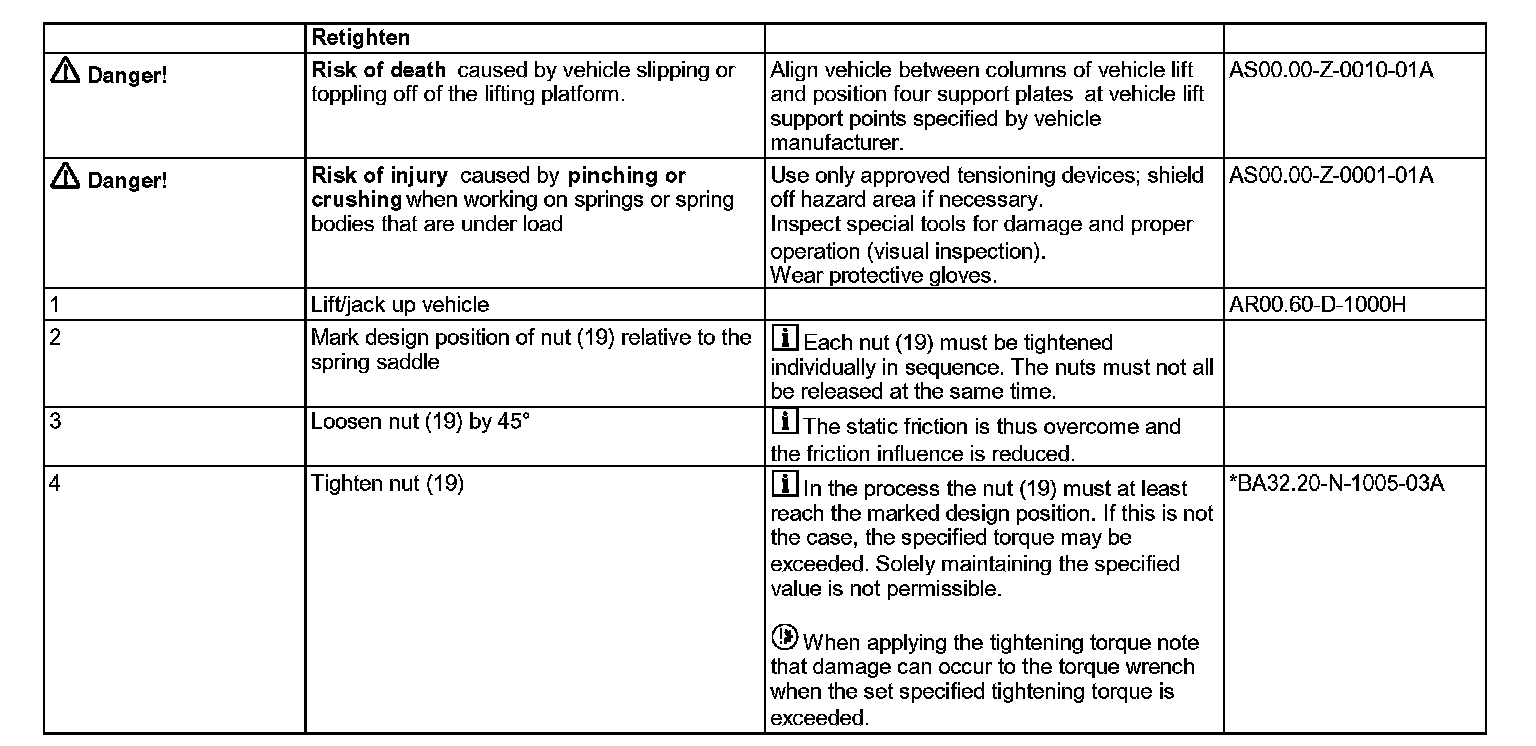

AP32.20-D-3271H Retighten Spring Brackets

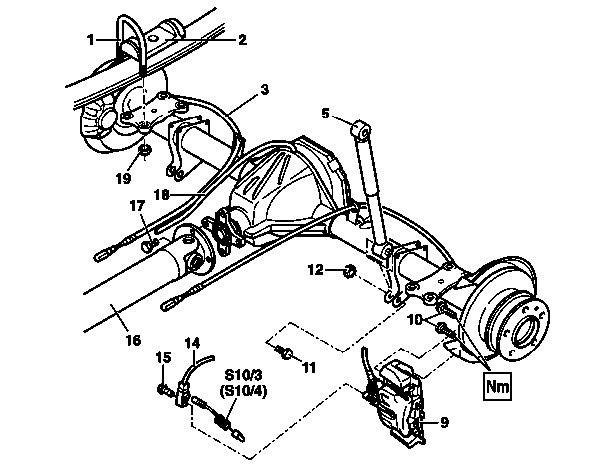

Shown on model 906.633 with rear axle 741.412

1 Spring U-bolt
2 Spring plate
19 Nut
