AR32.20-D-0240H Remove/Install Rubber Mount of Rear Axle Spring

AR32.20-D-0240H Remove/Install Rubber Mount of Rear Axle Spring

- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- except CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- except CODE (PL9) Air suspension, company VB-Airsuspension

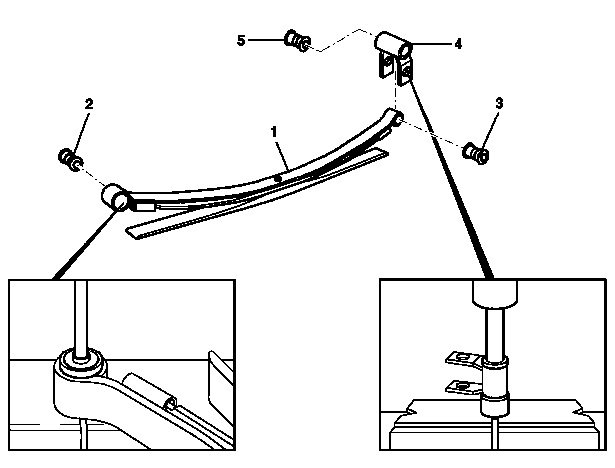

1 Rear spring
2 Front rubber mount
3 Rear rubber mount
4 Spring shackle
5 Rubber mount of spring shackle
