AR32.22-D-6000-02H Deactivate/Activate Air Suspension

AR32.22-D-6000-02H Deactivate/Activate Air Suspension
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Airsuspension





Deactivate air suspension

1 Switch on ignition.

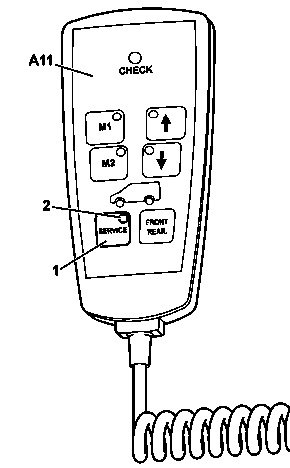

2 Press "SERVICE" button (1) on remote control (A11) for air suspension; LED (2) lights up.
3 Switch off ignition.

Activate air suspension

4 Switch on ignition.
5 Press "SERVICE" button (1) on remote control (A11) for air suspension; LED (2) goes out.
6 Switch off ignition.
