GF32.31-D-5109H Level Adjustment Switch, Component Description

GF32.31-D-5109H Level Adjustment Switch, Component Description


- with CODE (CE2) Rear air suspension

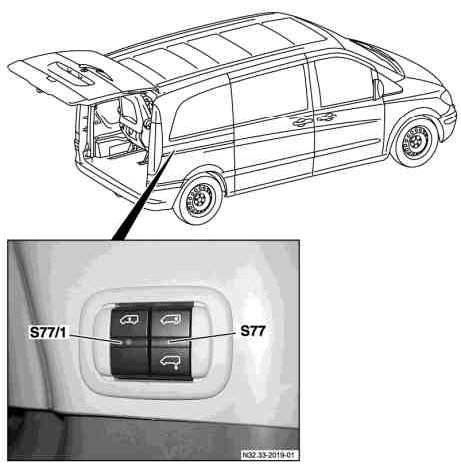

Illustrated on model 639

S77 Raise/lower level adjustment switch
S77/1 Level control lock-out switch

Location

Model 639

The raise or lower level control switch and the lock level control switch are located on the right-hand D-pillar and integrated into a single unit.

Model 906

The raise/lower electronic level control switch (S77/2) and the lock electronic level control switch (S77/1) are located in the cockpit area and integrated into a single unit.

Task

The raise/lower electronic level control switch (with model 639 raise or lower level control switch) enables the level of the vehicle's rear axle to be increased or reduced in each case by approx. 60 mm. The lock electronic level control switch can be used to deactivate the automatic level adaptation, this is, e.g. necessary when changing a wheel or performing repair work on the vehicle lift. Finally, the lock electronic level control switch can be used to activate the electronic level control (ELC [ENR]) system and therefore the automatic level adaptation again.
