Compressor/Pump: Service and Repair

AR32.22-D-2001H Remove/Install Compressor
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Air suspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Air suspension

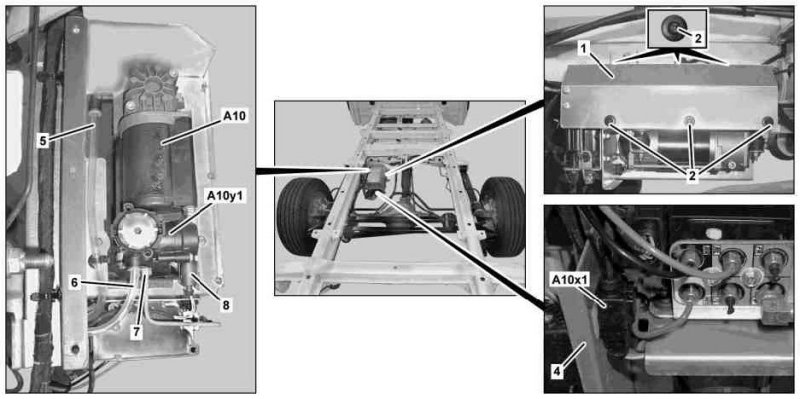

Shown on model 906.13

1 Cover
2 Expansion rivet
4 Bracket
5 Intake hose
6 Drain hose
7 Compressed-air line
8 Electrical connector

A10 Compressor
A10x1 Air compressor connector (2-pin)
A10y1 Air compressor solenoid valve

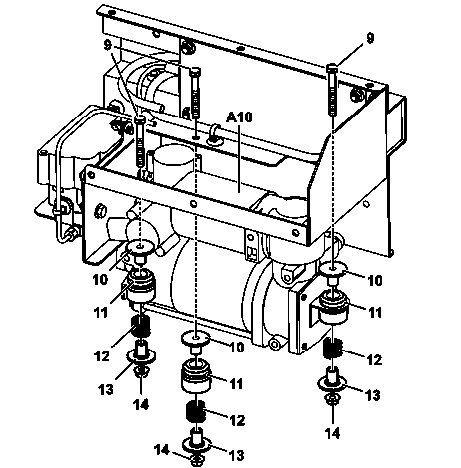

9 Bolts
10 Distance sleeve
11 Rubber bushing
12 Spring
13 Distance sleeve
14 Nut

A10 Compressor











129 589 00 91 00
Set of stop plugs
