AR32.22-D-2003H Remove/Install Air Bellows

AR32.22-D-2003H Remove/Install Air Bellows
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Air suspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Air suspension

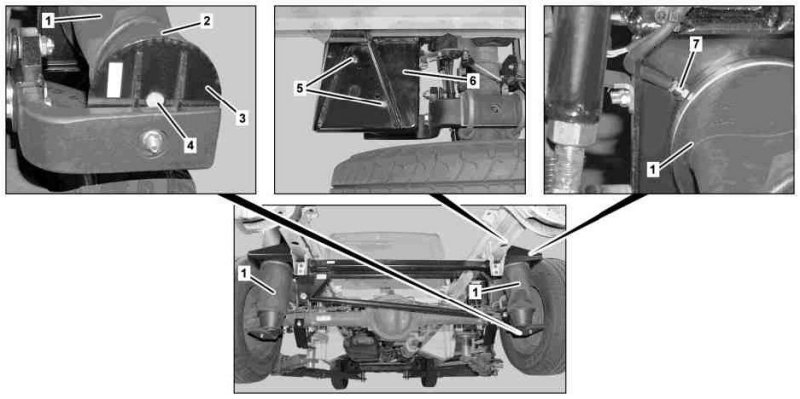

Shown on model 906.13

1 Air spring bellows
2 Piston
3 Mounting console
4 Screw
5 Bolts
6 Crossmember
7 Compressed-air line





1 Air spring bellows
2 Piston

















129 589 00 91 00
Set of stop plugs
