Air Pressure Limiter Valve: Service and Repair

AR32.22-D-2015H Remove/Install Air Suspension Valve Unit
MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Airsuspension

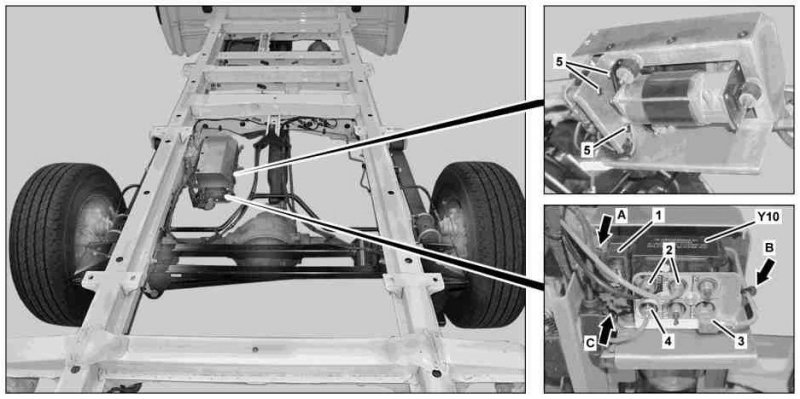

Shown on model 906.13

1 Electrical connector
2 Compressed air lines
3 Compressed-air line
4 Compressed-air line
5 Bolts

Y10 Valve unit











129 589 00 91 00
Set of stop plugs
