Stabilizer Link: Service and Repair

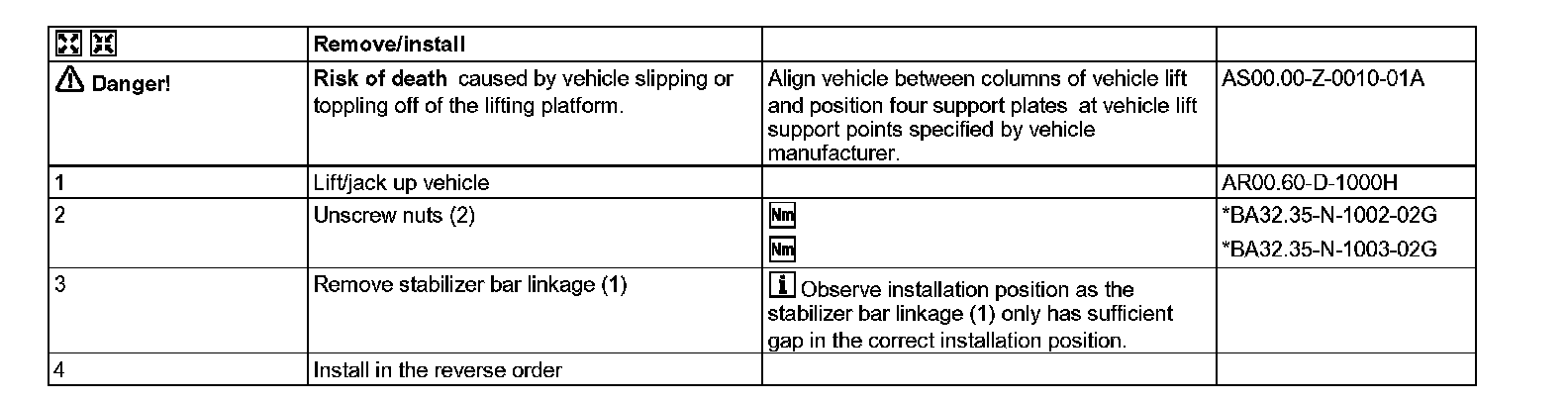

AR32.20-D-3335H Remove/Install Stabilizer Bar Linkage

- with CODE (C40) Front axle stabilizer bar
- with CODE (C45) Reinforced front axle stabilizer bar
- except CODE (ZG1) Engageable all-wheel drive
- except CODE (ZG2) Permanent all-wheel drive
- except CODE (ZG3) Gear reduction for all-wheel drive
- except CODE (ZG4) Permanent all-wheel drive with gear reduction





1 Torsion bar linkage

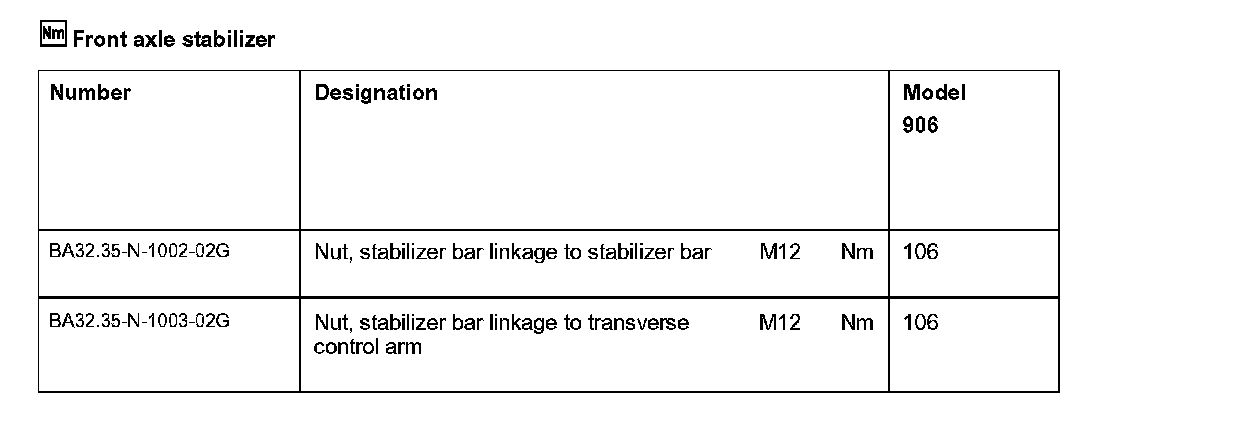

2 Nuts
