AR32.20-D-0350H Remove and Install Rubber Bushing on Front Stabilizer Bar




AR32.20-D-0350H Remove and Install Rubber Bushing on Front Stabilizer Bar

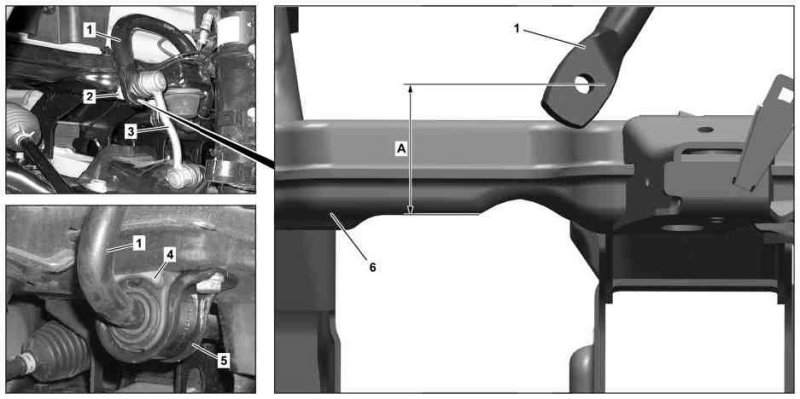

1 Stabilizer bar
2 Nut
3 Torsion bar linkage
4 Rubber bushing
5 Bearing shell
6 Front axle

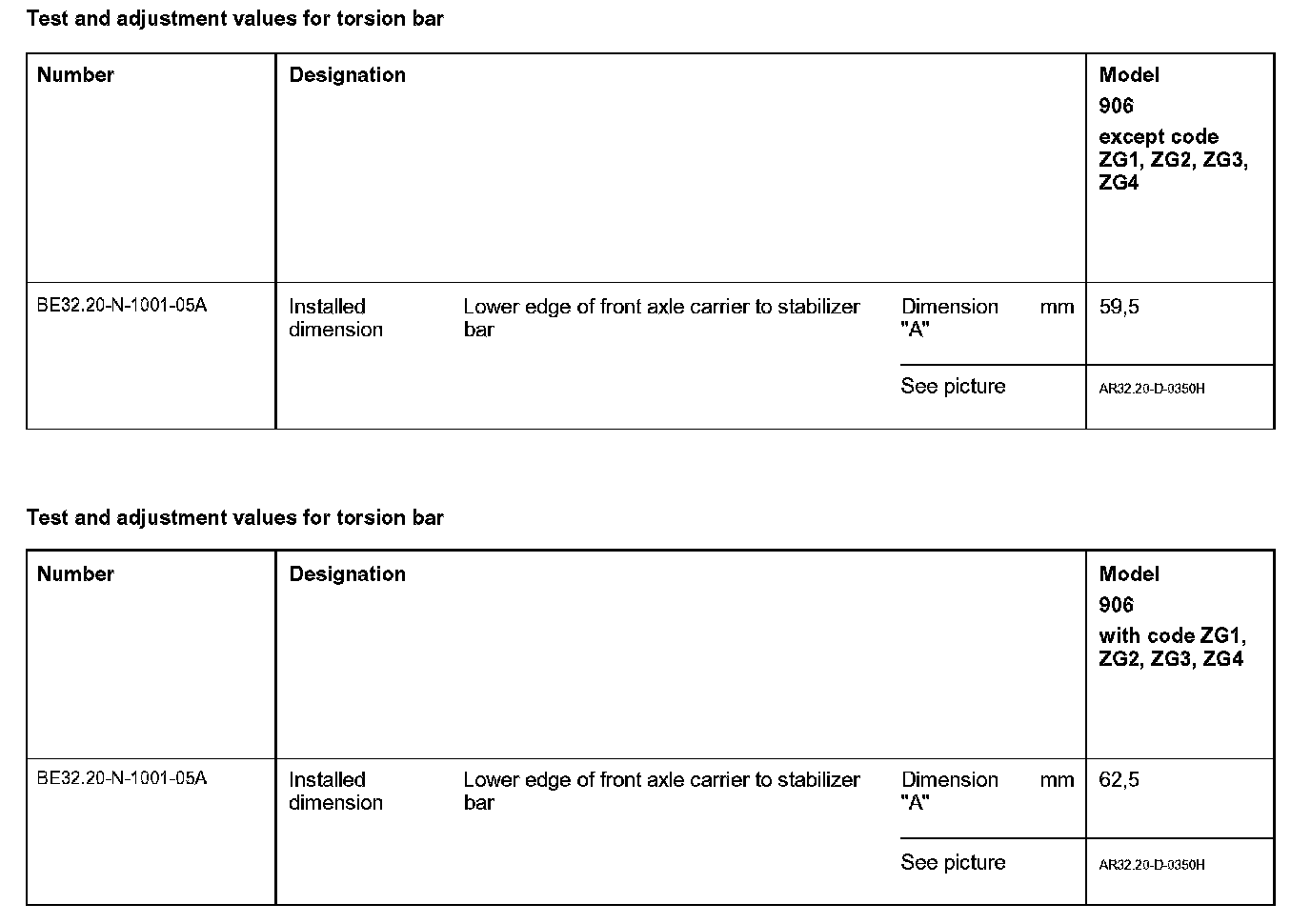

A Installed dimension
