AR32.35-D-2210-04H Remove/Install Bearing Bushing at Stabilizer Bar

AR32.35-D-2210-04H Remove/Install Bearing Bushing At Stabilizer Bar
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Airsuspension





601 589 04 43 00
Installation tool








Removing

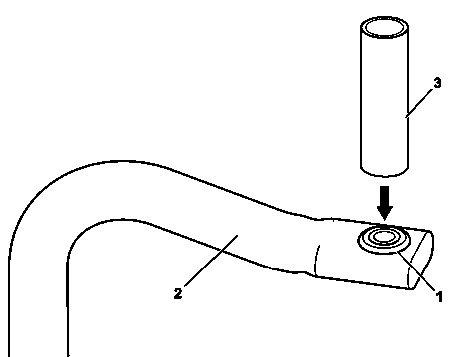

1 Press out bushing (1) from stabilizer bar (2) using a suitable drift (3) (arrow).

Workshop press
gotis://G_58.2_01.0





Install

2 Press bushing (1) into stabilizer bar (2) using push-in device (4).

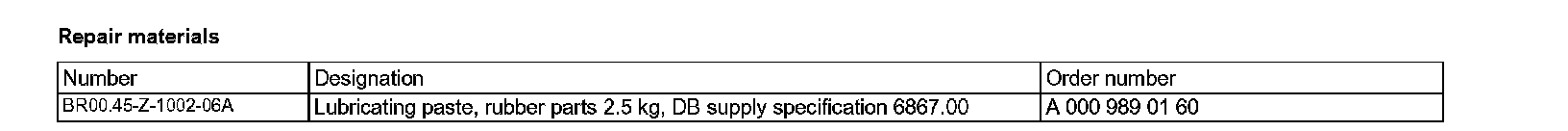

Coat the bushing (1) with lubricant paste.

Press the bushing (1) centrally into the eye of the stabilizer bar (2).
