BT32.20-D-0004-01A Modified Rubber Mount on Front-axle Stabilizer Bar

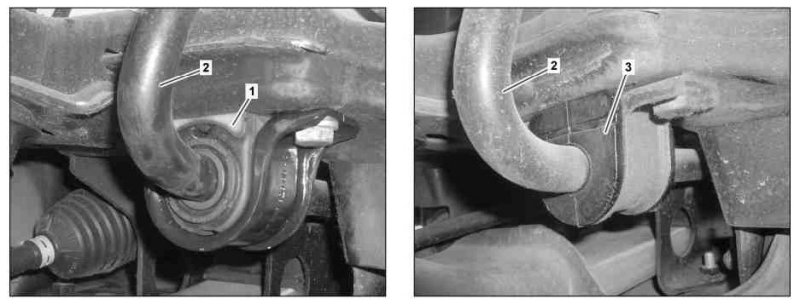

Picture A: New version

1 Rubber bushing
2 Stabilizer bar

Picture B: Old version

2 Stabilizer bar
3 Rubber bushing

As of production period 07/2010 a modified rubber mount (1) to the stabilizer bar on the front axle. In contrast to the old rubber mount (3) this is a torsion bearing, which has to be installed and bolted at the zero position. The stabilizer bar (2) is then hooked into the link rods.

In a repair instance, care must be taken to ensure that only the rubber mounts (1) are installed. Both sides must always be processed.

The bearing shells with bolts are also to be replaced during the change, because the geometry of the bearing shells was changed.
