Control Arm: Service and Repair

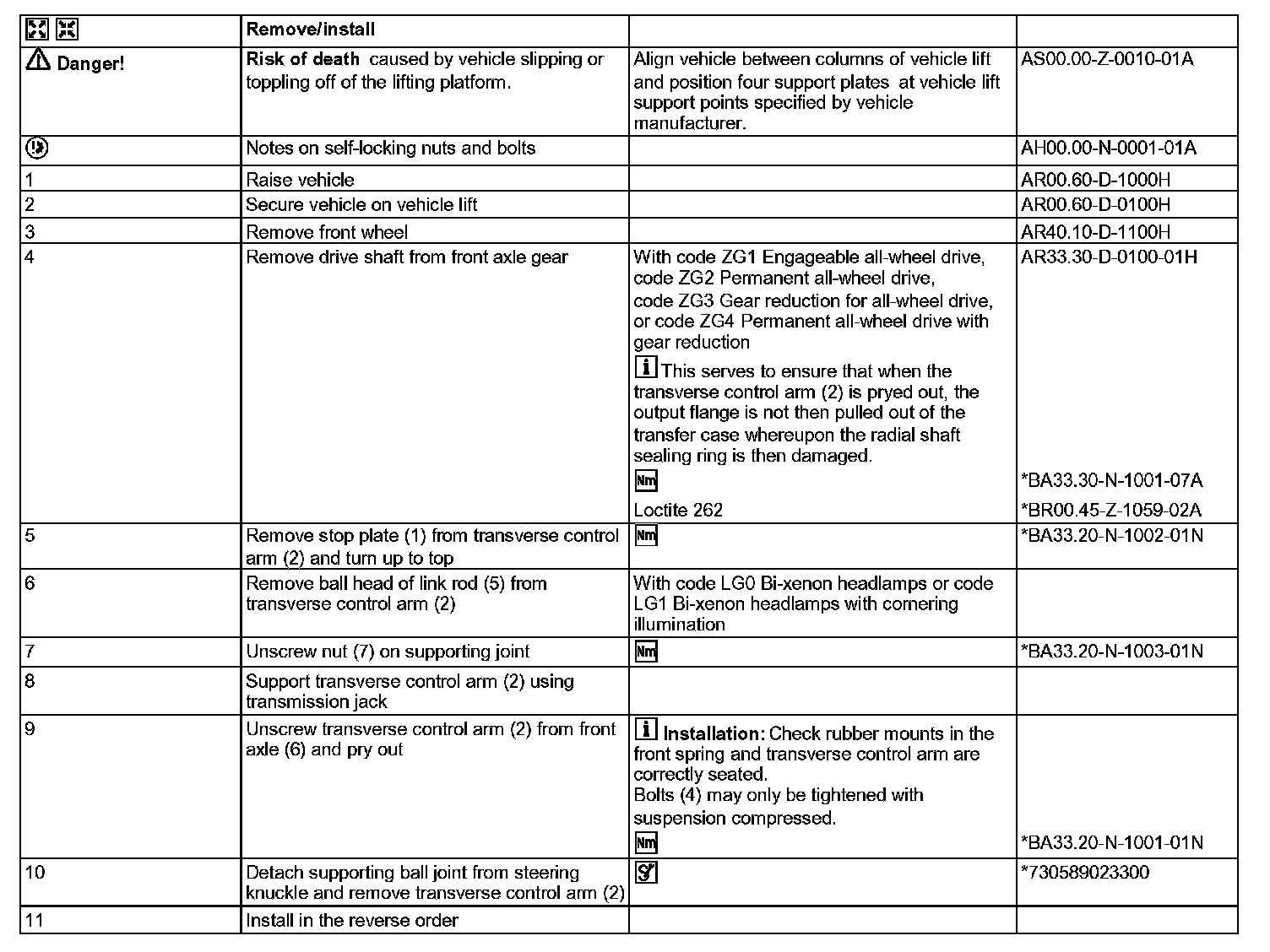

AR33.20-D-1452H Remove/Install Front Axle Transverse Control Arm






1 Stop plate
3 Bolts





2 Transverse control arms
4 Bolts
6 Front axle





Shown with code LG0 Bi-xenon headlamps

2 Transverse control arms
5 Link rod





2 Transverse control arms
7 Nut

















730 589 02 33 00
Puller
