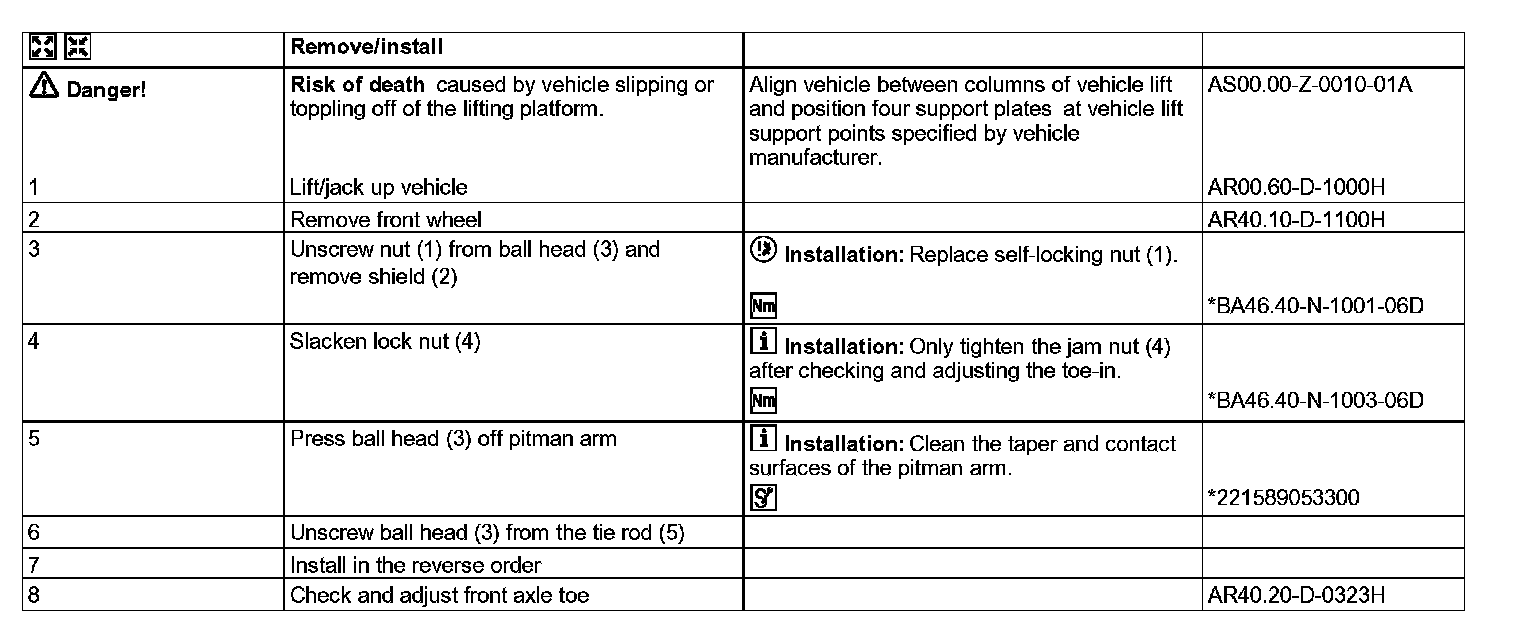

AR46.40-D-7242C Remove/Install Ball Head




AR46.40-D-7242C Remove/Install Ball Head

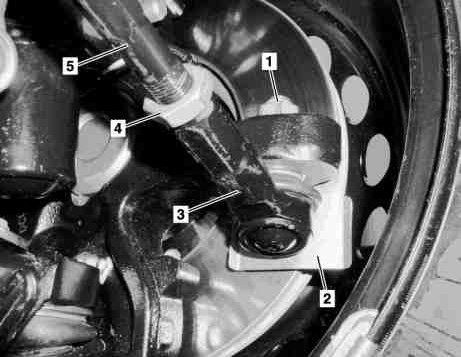

1 Nut
2 Shield
3 Ball head
4 Jam nut
5 Tie rod














221 589 05 33 00
Puller
