Steering Shaft: Service and Repair

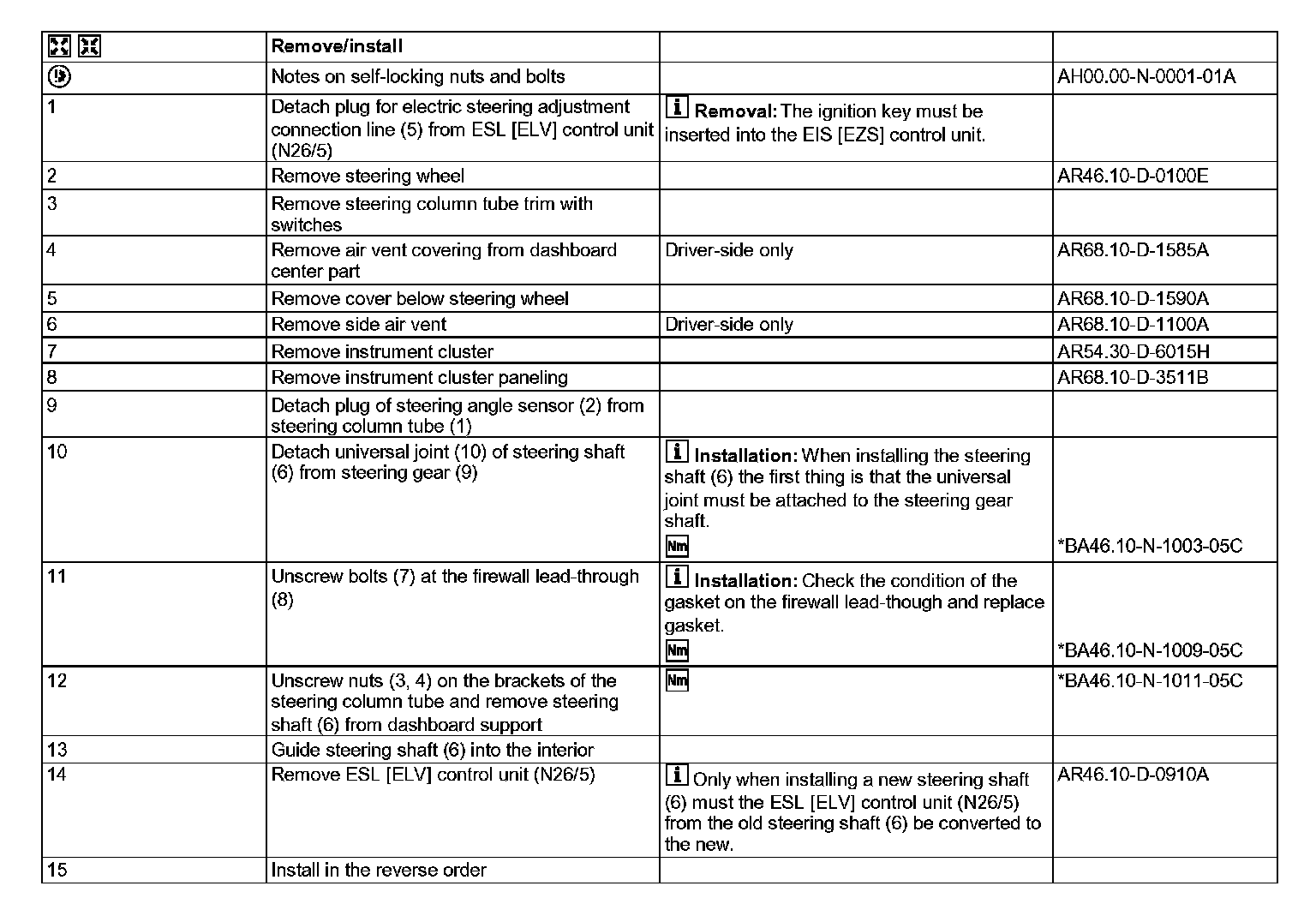

AR46.10-D-7300C Remove/Install Steering Shaft

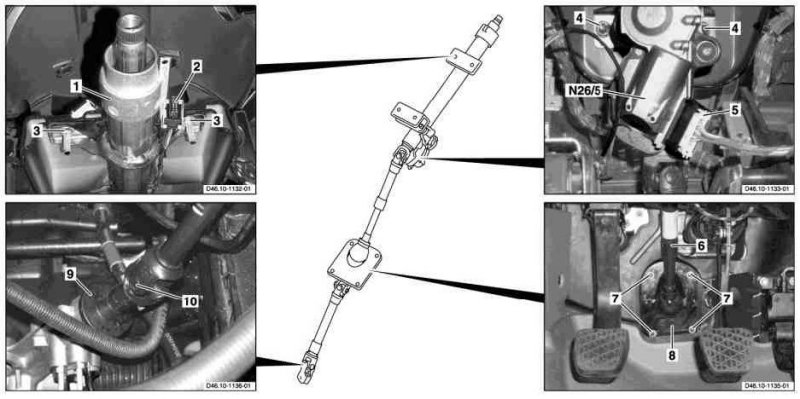

1 Jacket tube
2 Steering angle sensor connector
3 Nut
4 Nut
5 Plug for ELV [electric steering adjustment] connection line
6 Steering shaft
7 Bolts
8 Firewall lead-through
9 Steering gear
10 Universal joint
N26/5 ELV control unit
