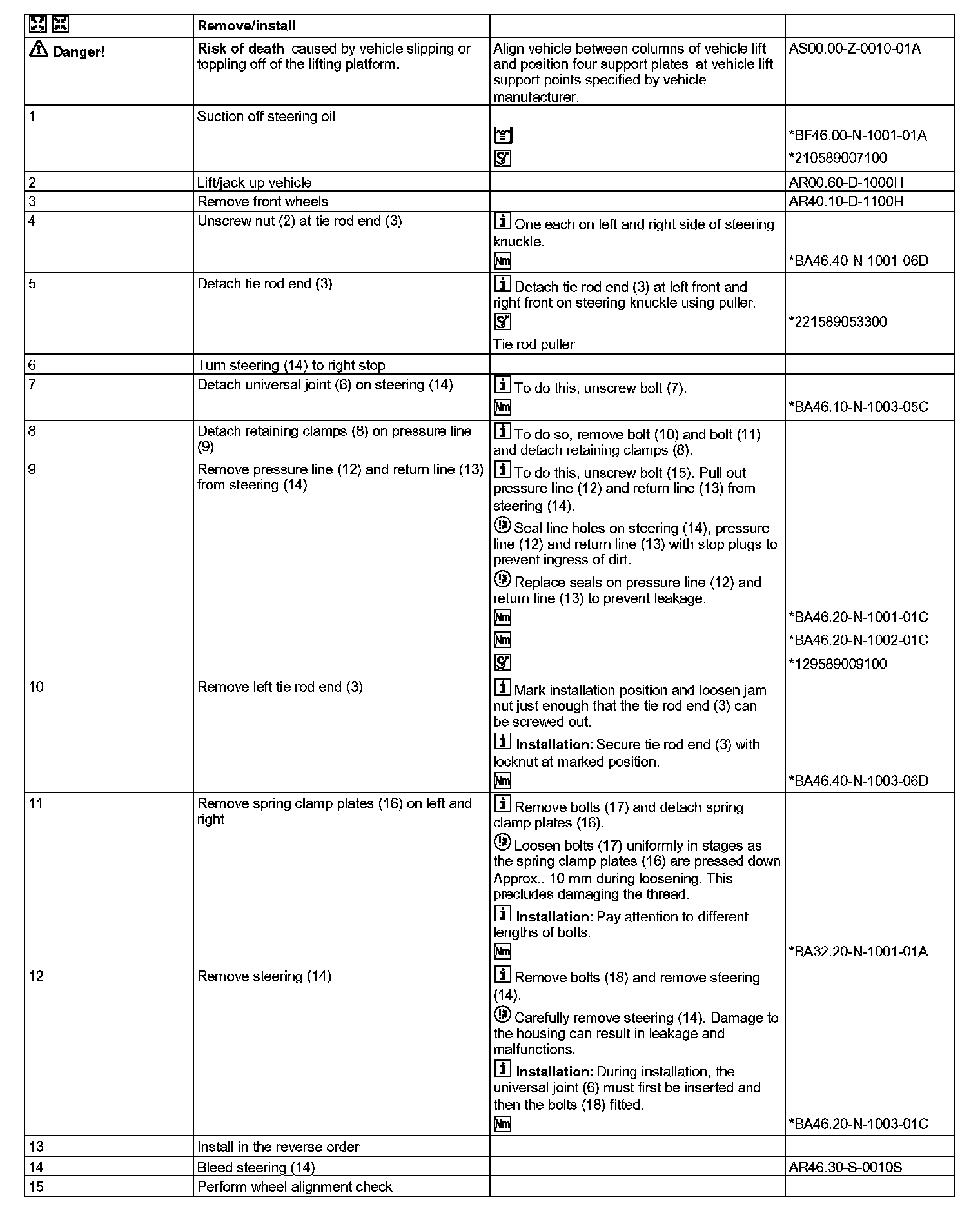

AR46.20-D-0500H Remove/Install Steering Gear

AR46.20-D-0500H Remove/Install Steering Gear












1 Brake disk
2 Nut
3 Tie rod end
4 Heat shield
5 Screw
6 Universal joint
7 Screw
8 Retaining clamp
9 High pressure line
10 Nut











11 Nut
12 High pressure line
13 Return flow pipe
14 Steering
15 Screw
16 Spring clamp plates
17 Bolts
18 Bolts


























129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





221 589 05 33 00
Puller
