Steering Gear: Adjustments

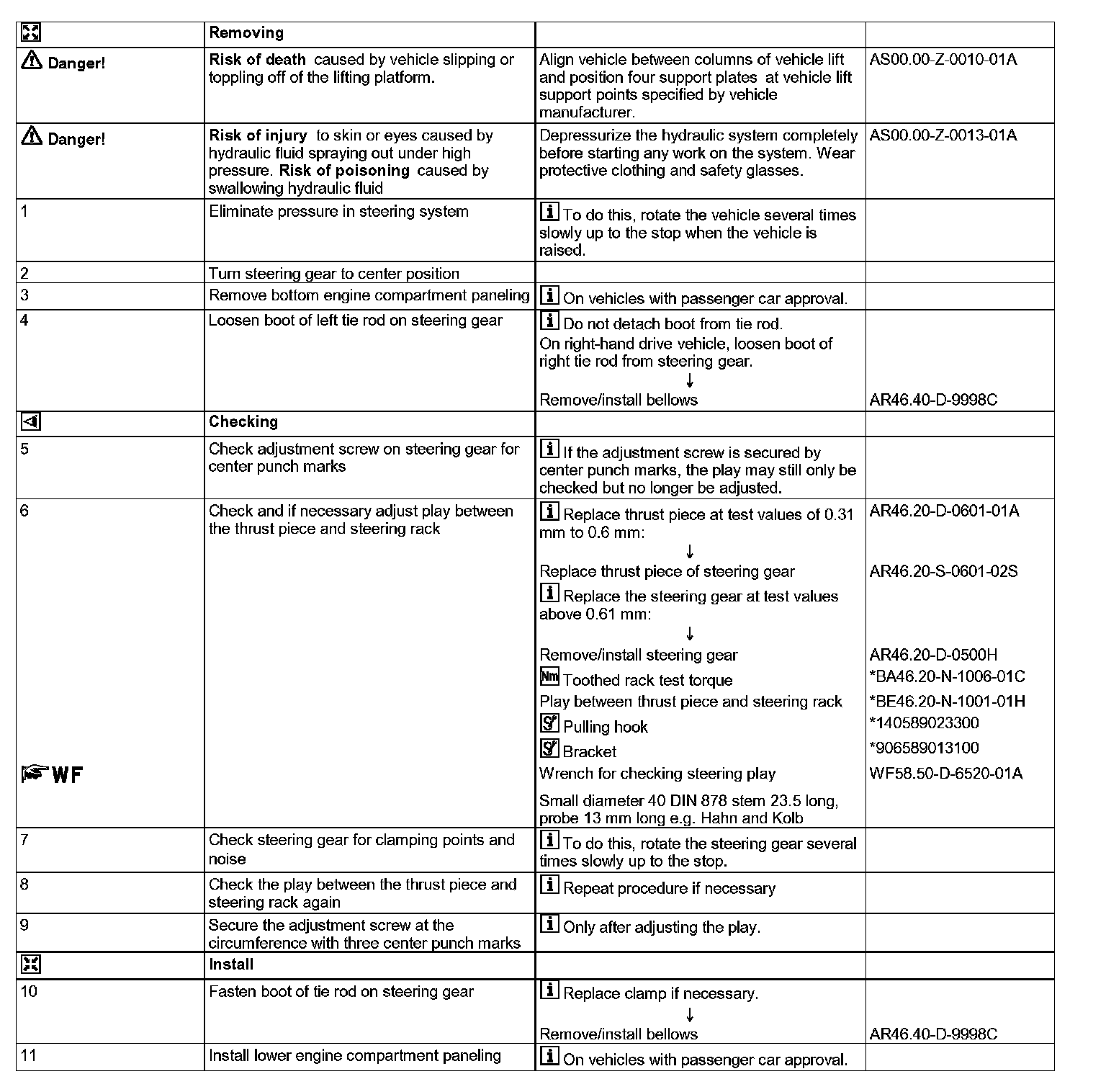

AR46.20-D-0601B Setting Play Between Thrust Element and Steering Rack















906 589 01 31 00
Bracket





140 589 02 33 00
Pulling hook
