Removal and Replacement

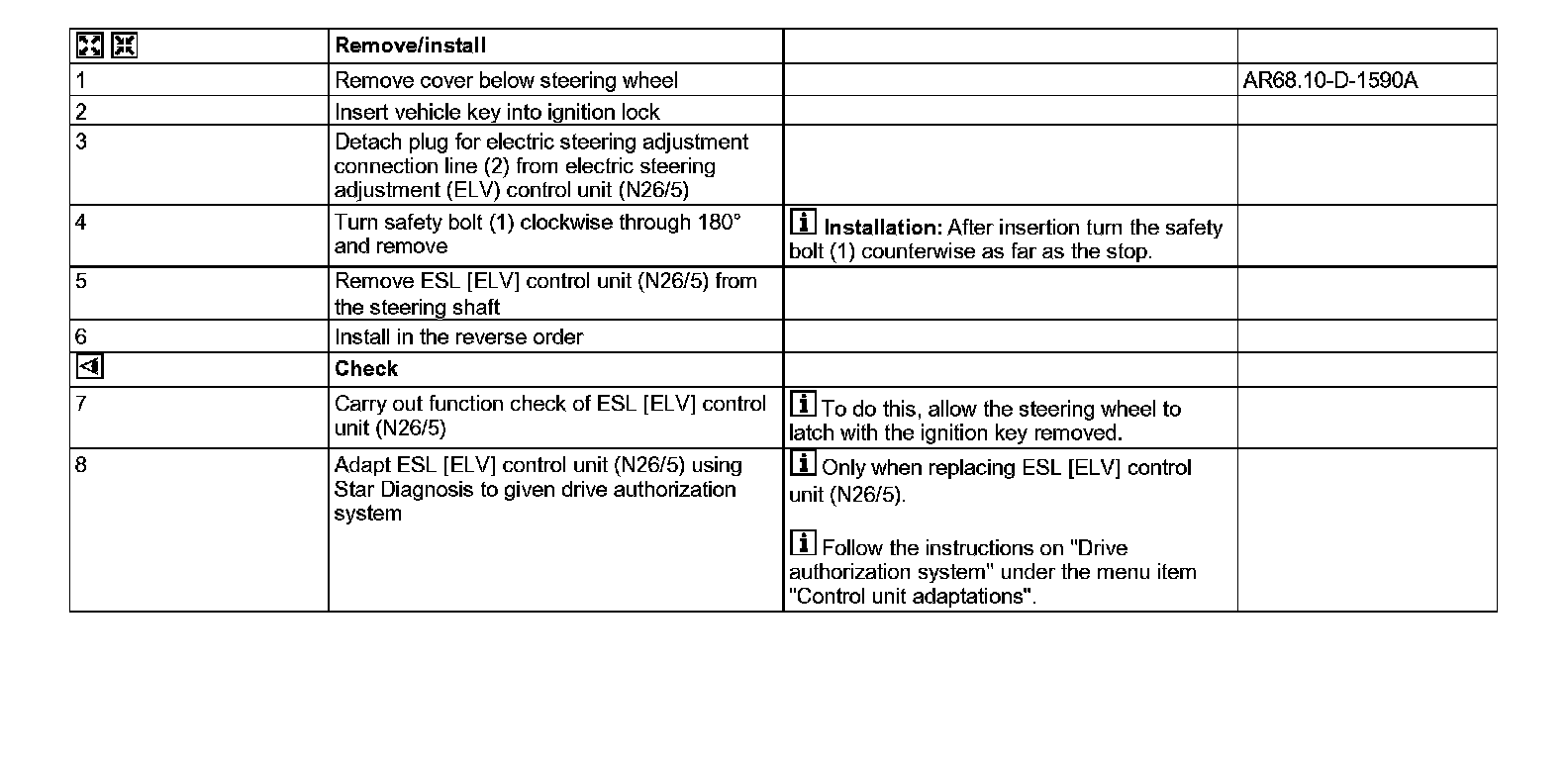

AR46.10-D-0910A Remove/Install Electronic Steering Lock

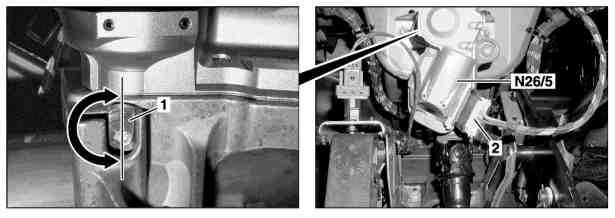

1 Safety bolt
2 Plug for ELV [electric steering adjustment] connection line
N26/5 ELV control unit
