Procedures

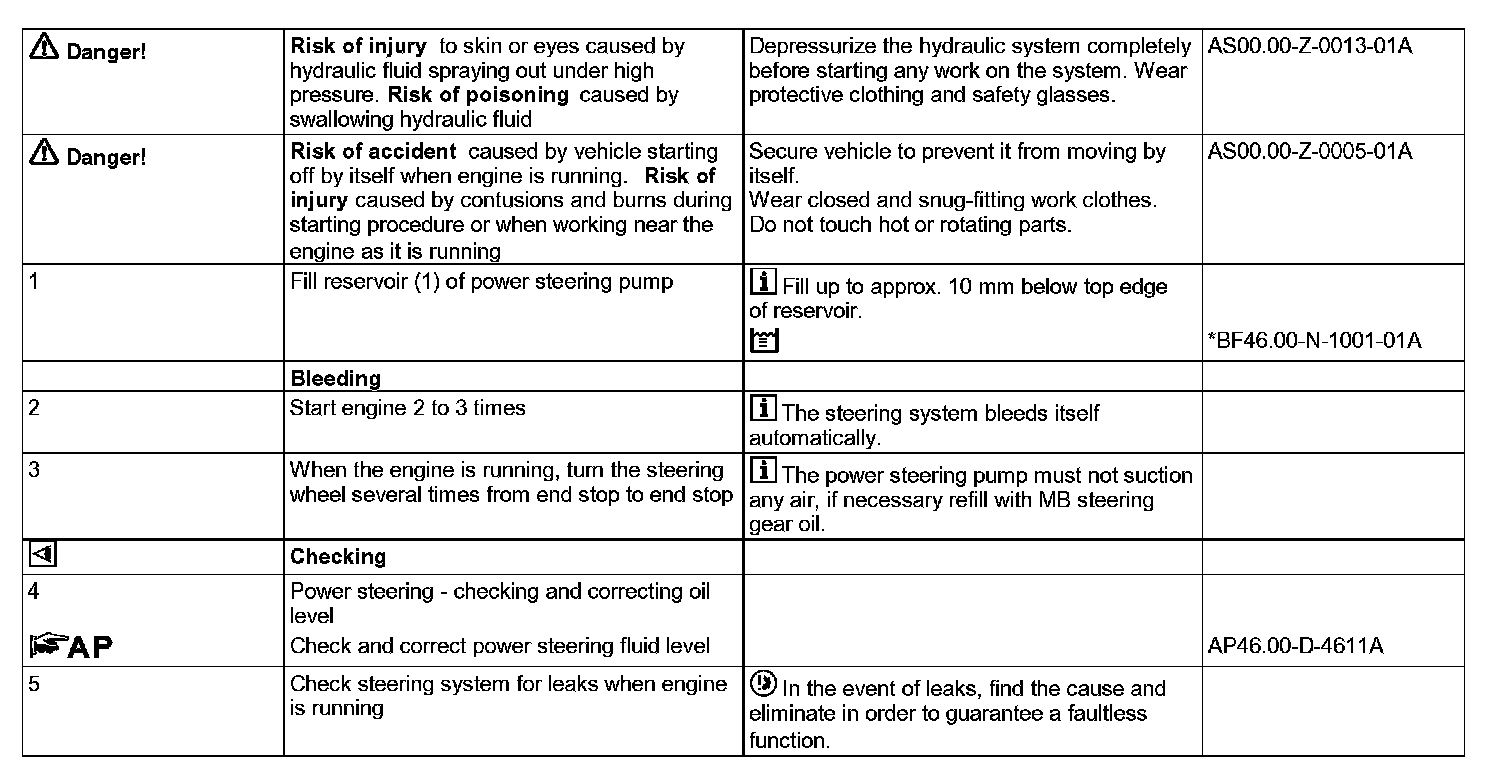

AR46.30-S-0010S Fill Power Steering Pump and Bleed






Shown on model 639 with engine 112

1 Reservoir
2 Reservoir cap
3 Dipstick
