Front Steering Knuckle: Service and Repair

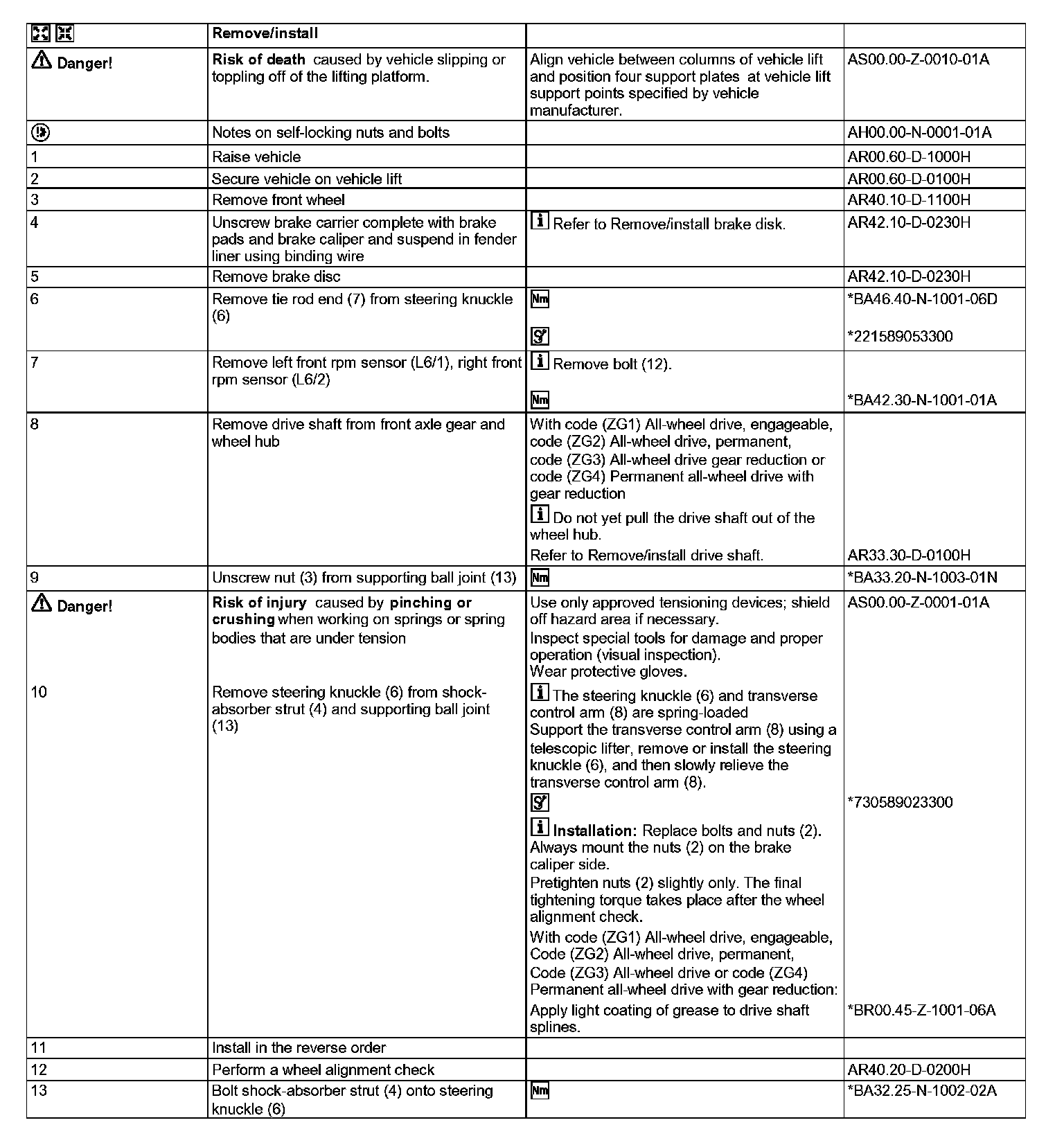

AR33.20-D-3505H Remove/Install Steering Knuckle With Wheel Hub

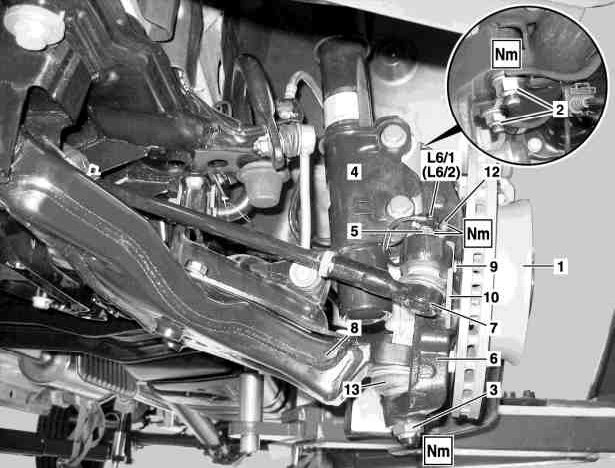

1 Brake disk
2 Nuts
3 Nut
4 Shock-absorber strut
5 Nut
6 Steering knuckle
7 Tie rod end
8 Transverse control arms
9 Screw
10 Heat shield
12 Screw
13 Support joint

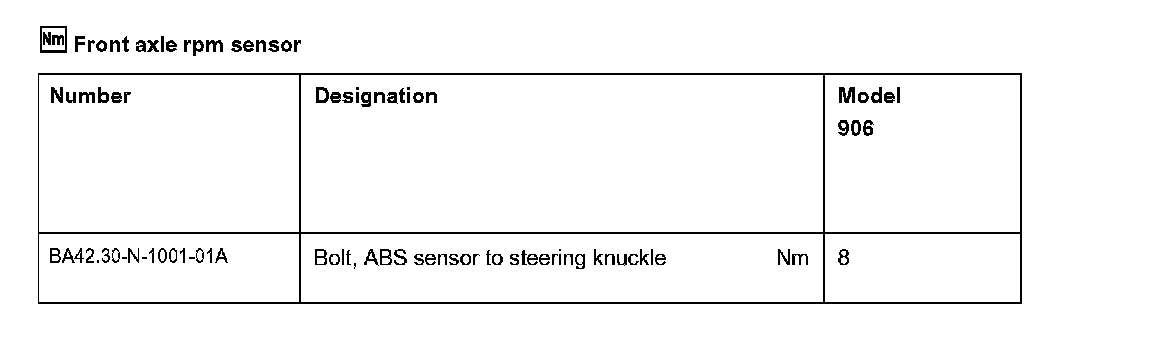

L6/1 Left front rpm sensor
L6/2 Right front rpm sensor

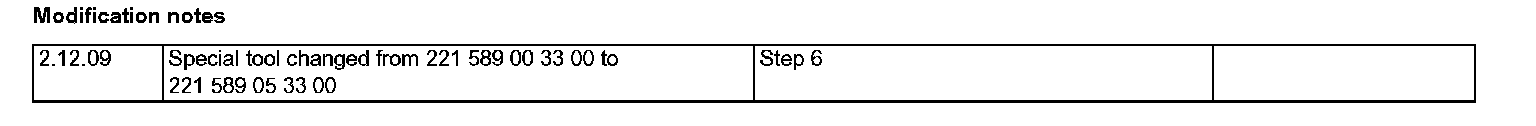

221 589 05 33 00
Puller





730 589 02 33 00
Puller
