AR54.10-D-1129A Check Condition of Battery
AR54.10-D-1129A Check Condition of Battery
AR54.10-D-1129A Check Condition Of Battery

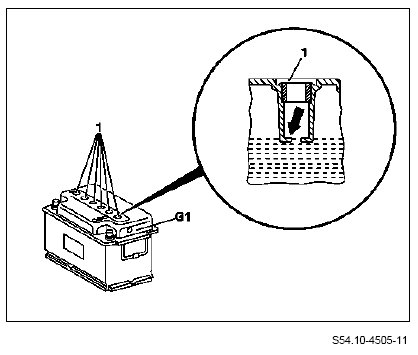

Shown on starter battery
1
Plug
G1
Battery
