Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> BA32.22-N-1000-03H Air Suspension

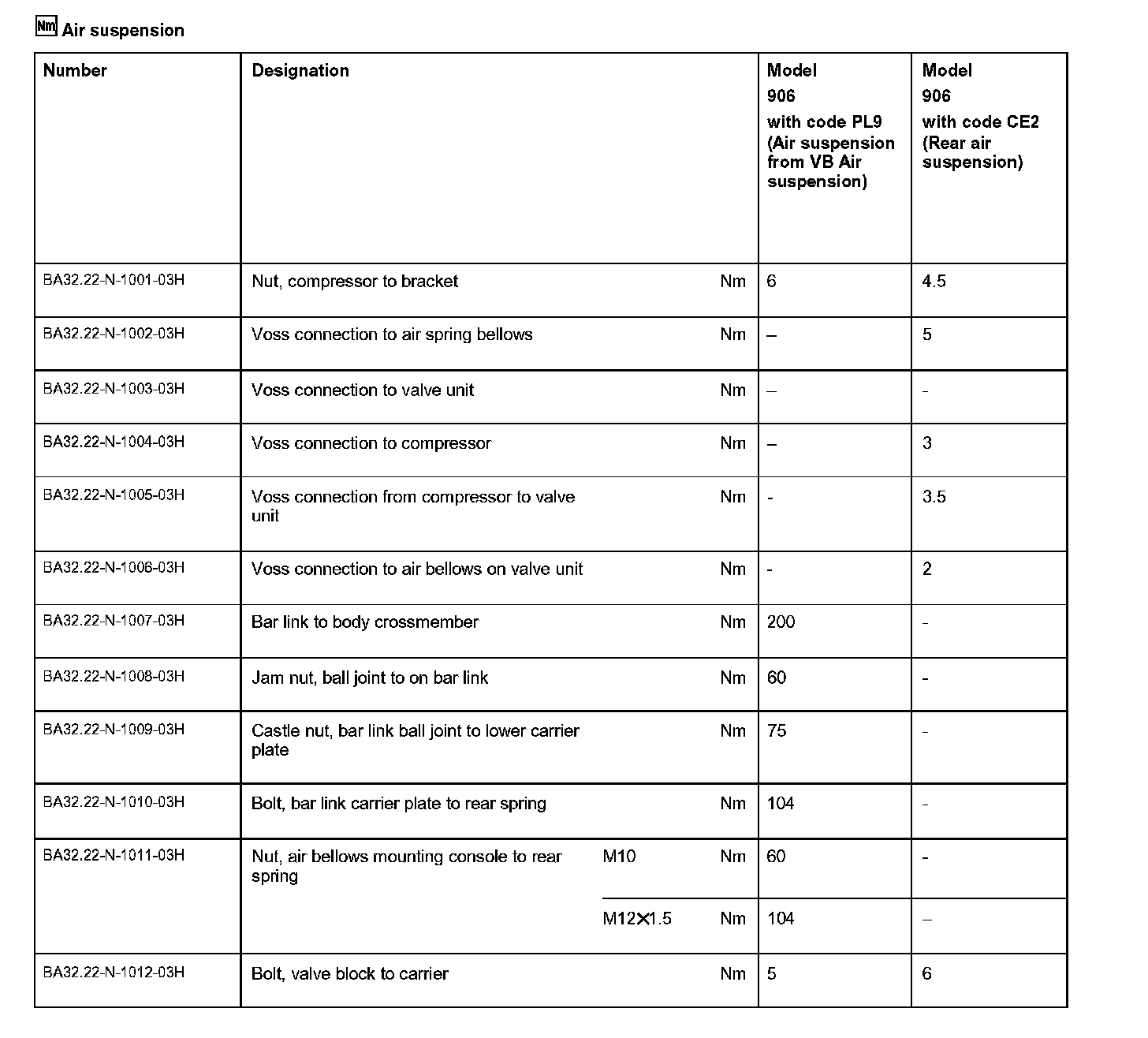

BA32.22-N-1000-03H Air Suspension



BA32.22-N-1000-03H Air Suspension

- with code (PL9) Air suspension from VB Air Suspension
- with CODE (CE2) Rear air suspension
