Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> BA32.20-N-1000-03A Rear Axle Steel Suspension

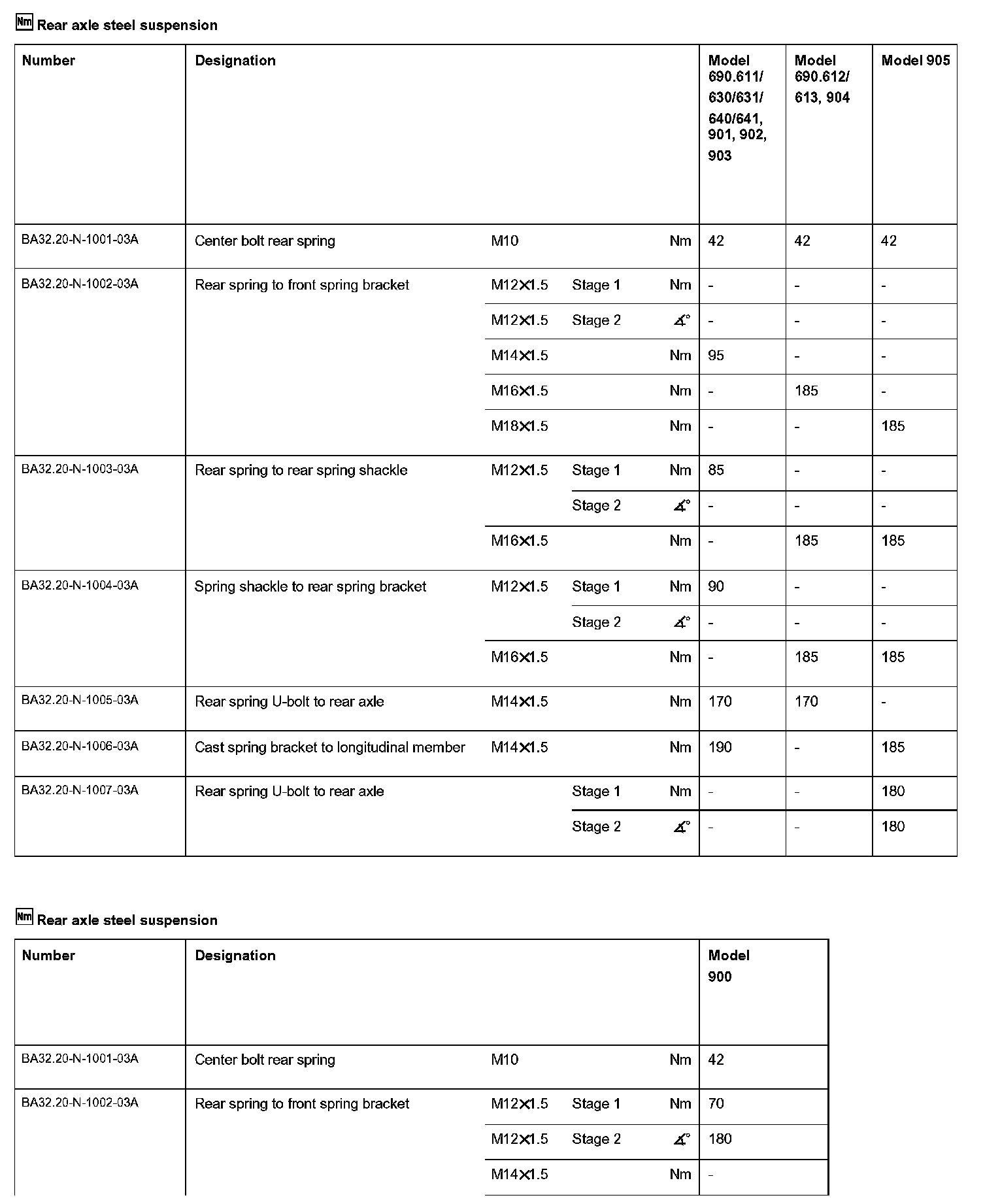

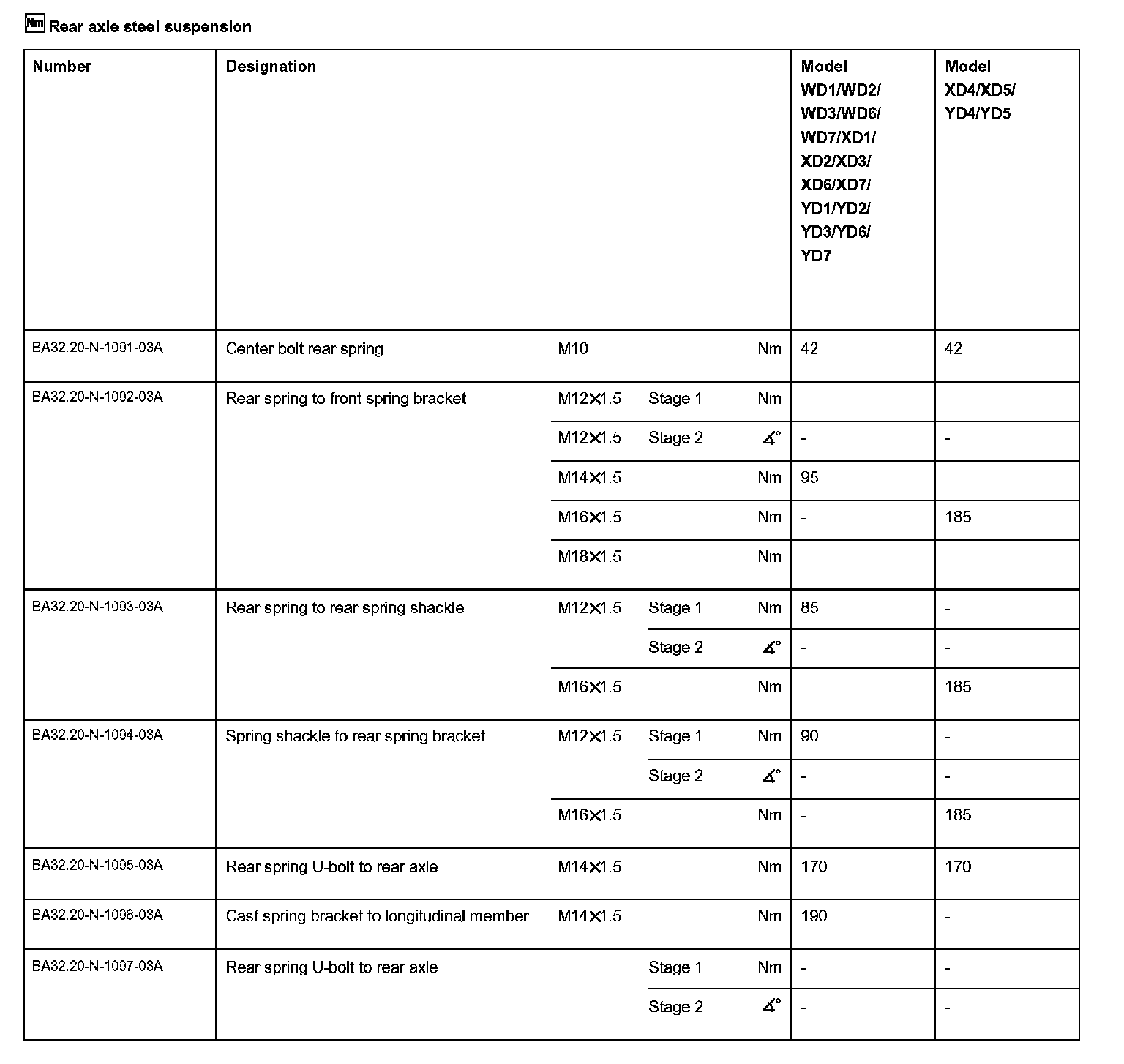

BA32.20-N-1000-03A Rear Axle Steel Suspension



BA32.20-N-1000-03A Rear Axle Steel Suspension
