Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Fuel Delivery and Air Induction >> System Specifications

System Specifications

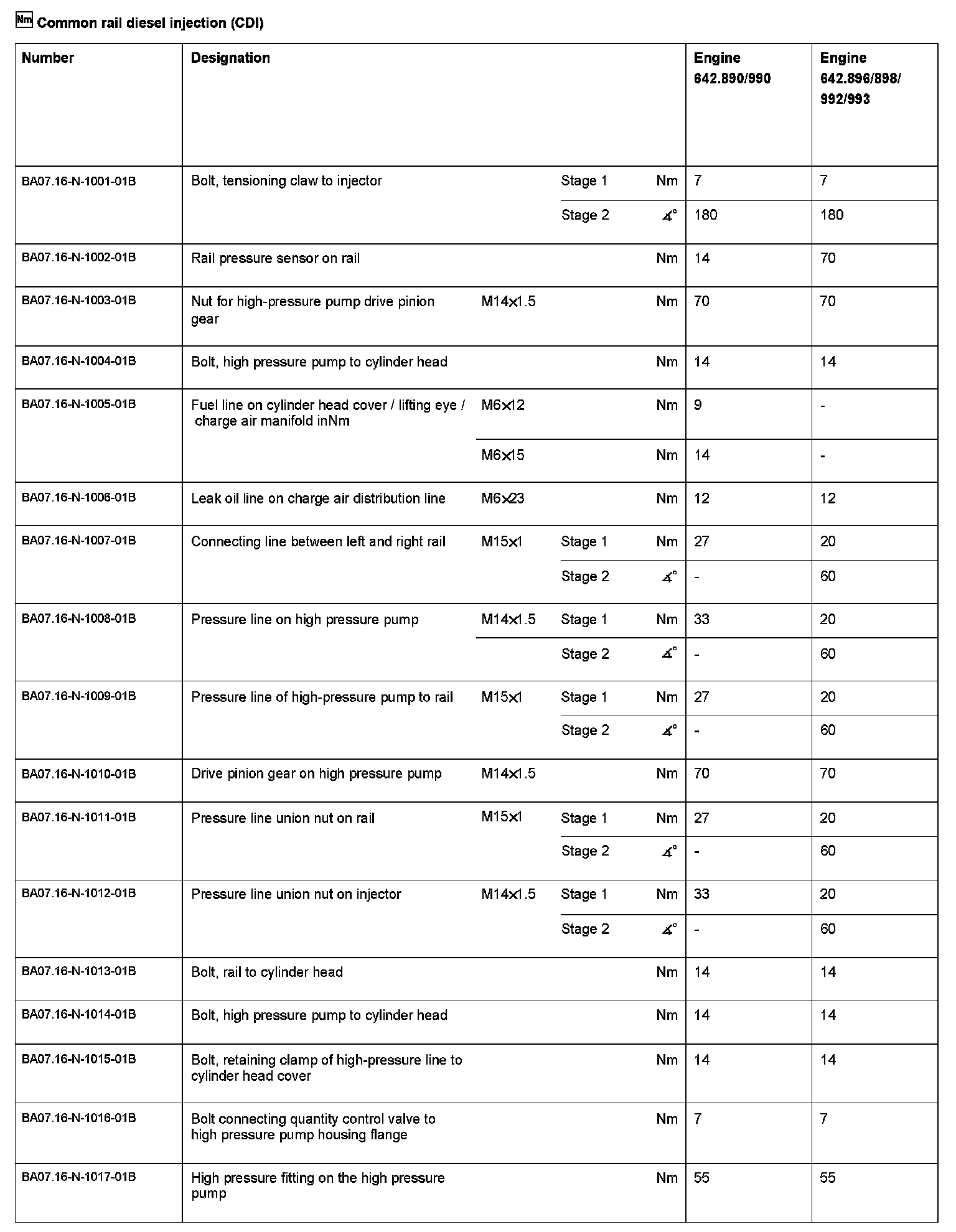

BA07.16-N-1000-01B Common Rail Diesel Injection (CDI)
