Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine

Oil Pan, Engine

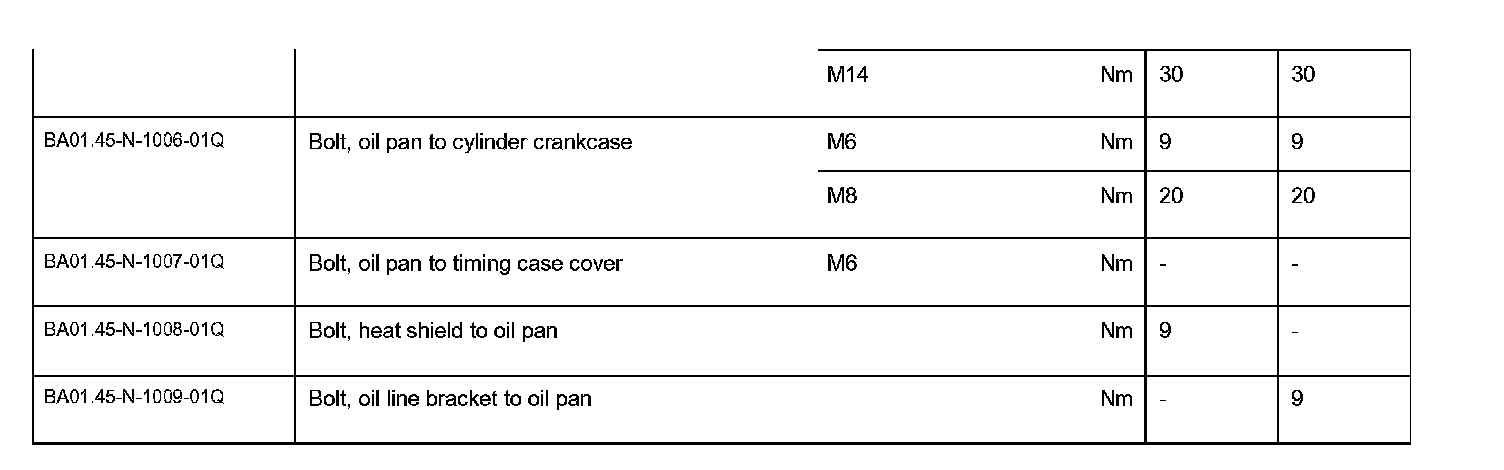

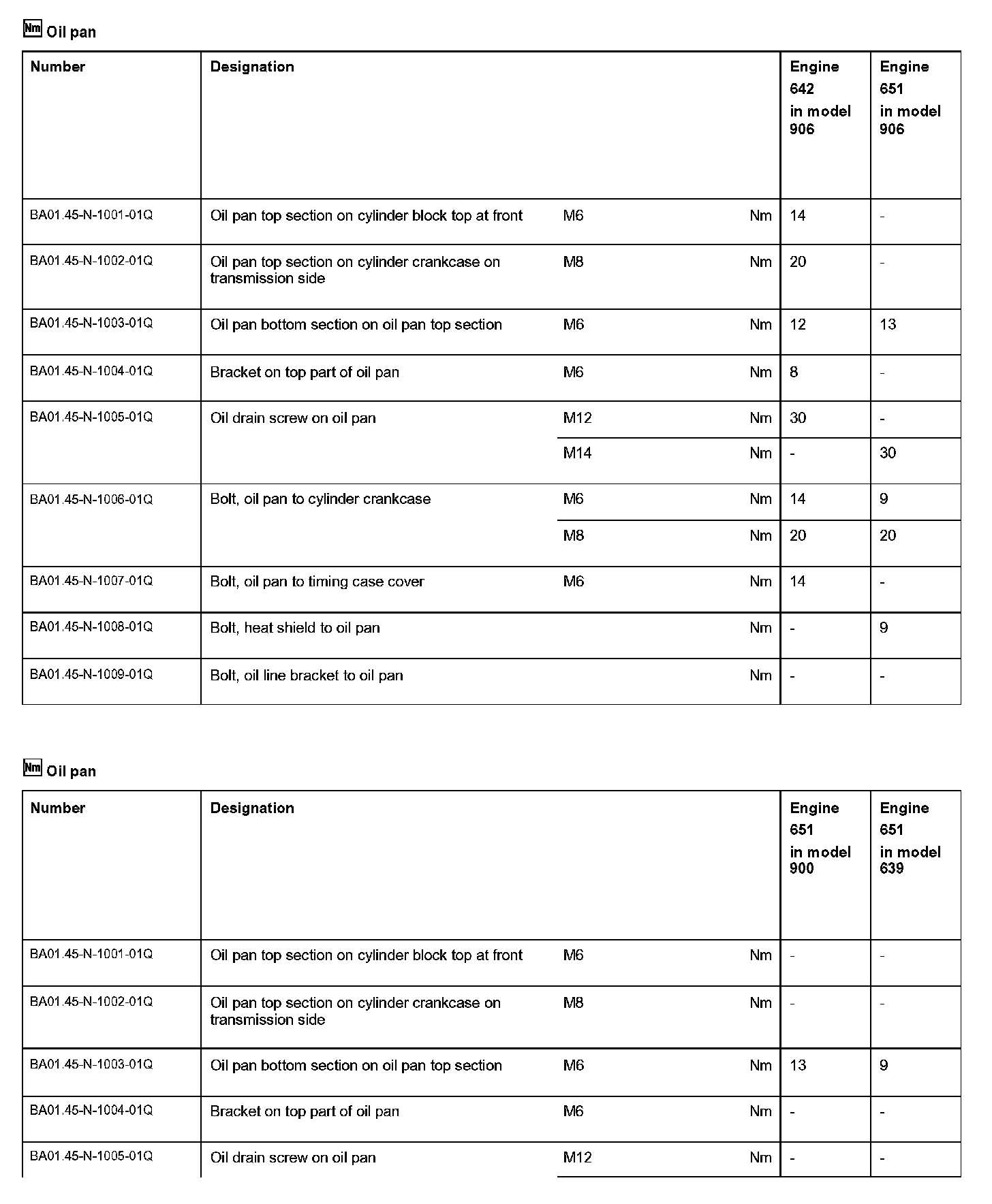

BA01.45-N-1000-01Q Oil Pan
