Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Hydraulic System, Brakes >> Brake Hose/Line

Brake Hose/Line

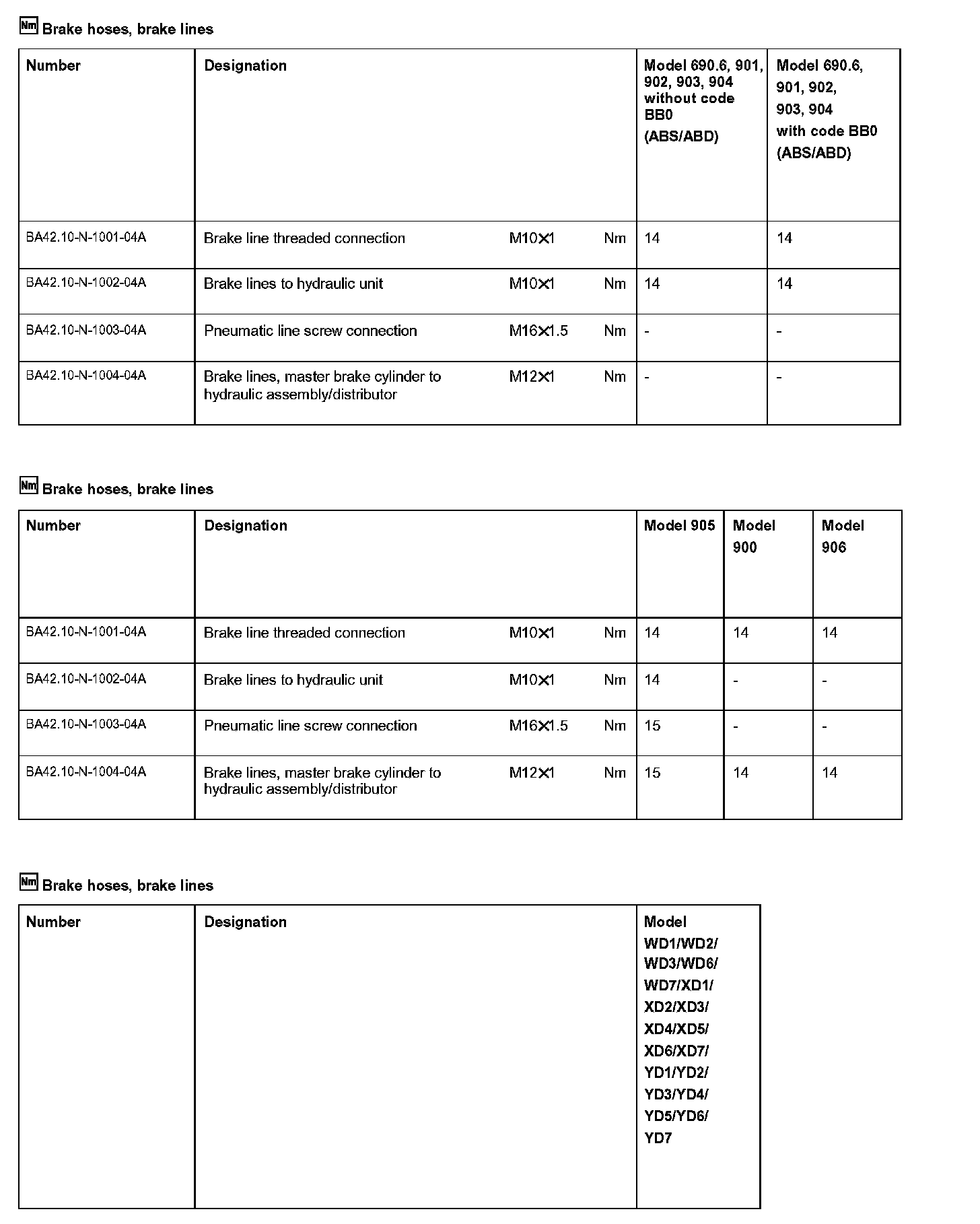

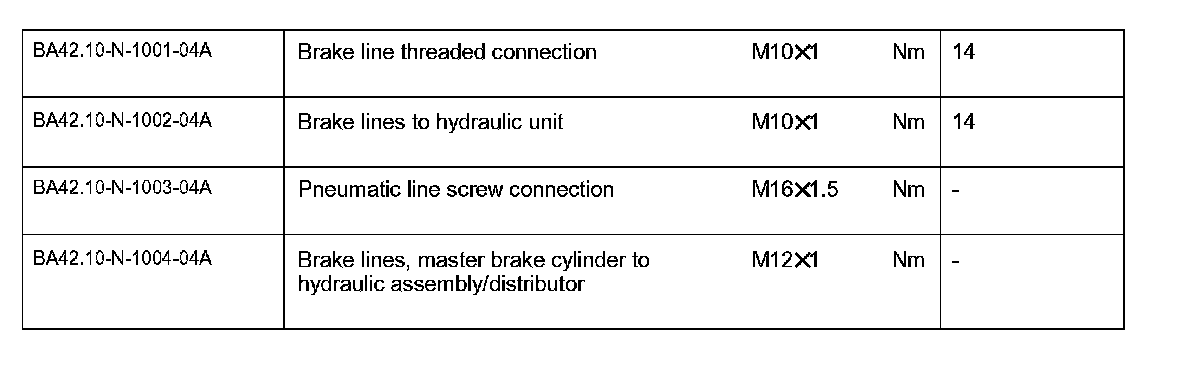

BA42.10-N-1000-04A Brake lines, brake hoses
