SM00.00-D-0011AK Carry Out Service Measures With Code KOLBENBREM

SM00.00-D-0011AK Carry Out Service Measures With Code KOLBENBREM
MODEL 906.### #N as of 304413 up to 317754, 906.### #S as of 105687 up to 125582

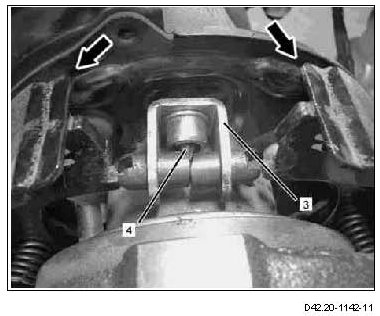

1 Return spring
2 Brake shoes







3 Adjuster
4 Adjustment screw



















116 589 01 62 00, Removal and installation tool
