EGR Temperature Sensor: Service and Repair

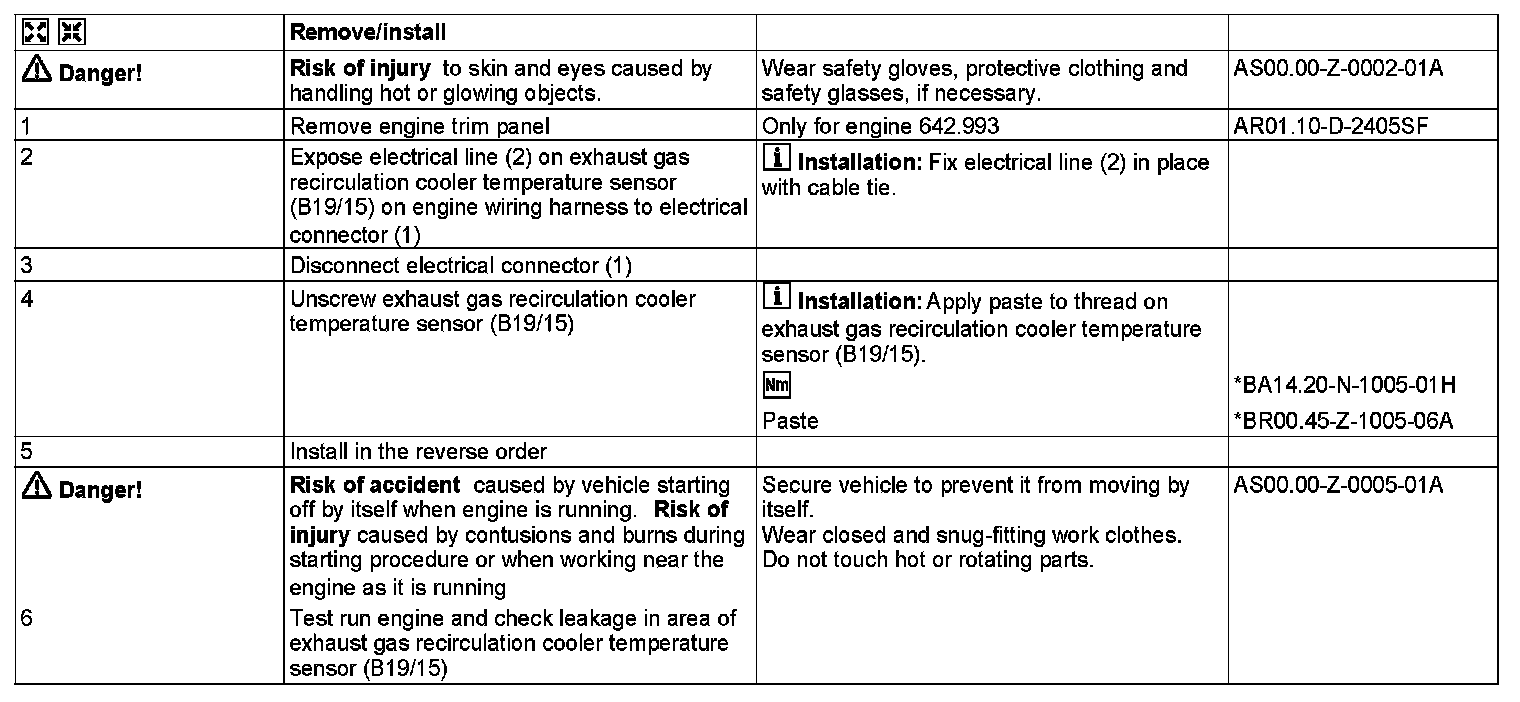

AR07.04-D-0013SF Remove/install Exhaust Gas Recirculation Temperature Sensor

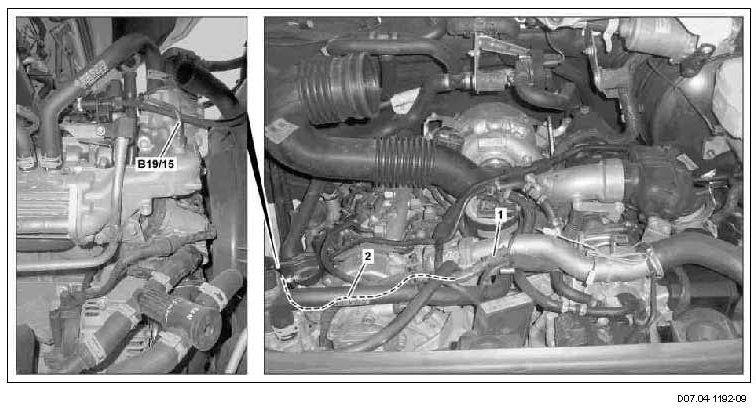

1 Electrical connector
2 Electrical line
B19/15 Exhaust gas recirculation cooler temperature sensor
