Seat Belt Retractor: Service and Repair

AR91.40-D-1015-02A Remove/Install Automatic Belt Retractor On B-pillar















1. Detach connector of connection line for emergency tensioning retractor (2) from automatic belt retractor (1).

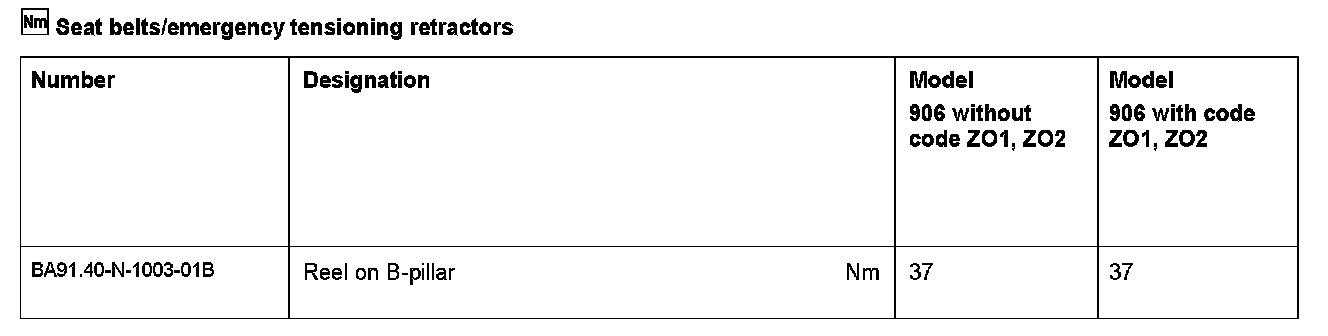

2. Remove bolt (3) and remove automatic belt retractor (1) from B-pillar.
3. Install in the reverse order.
