GF54.21-D-3038HA PSM CAN Matrix, Function




GF54.21-D-3038HA PSM CAN Matrix, Function

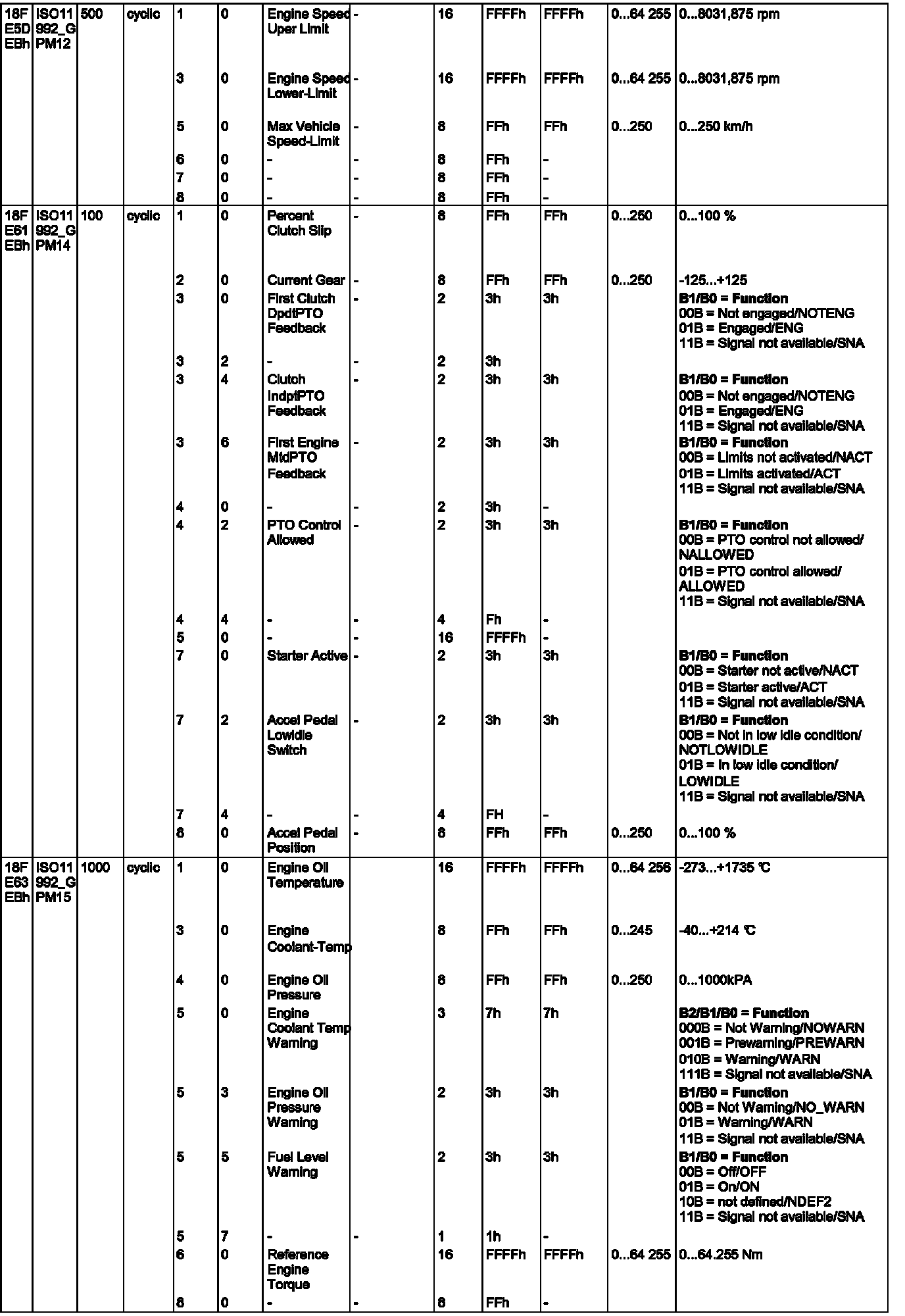

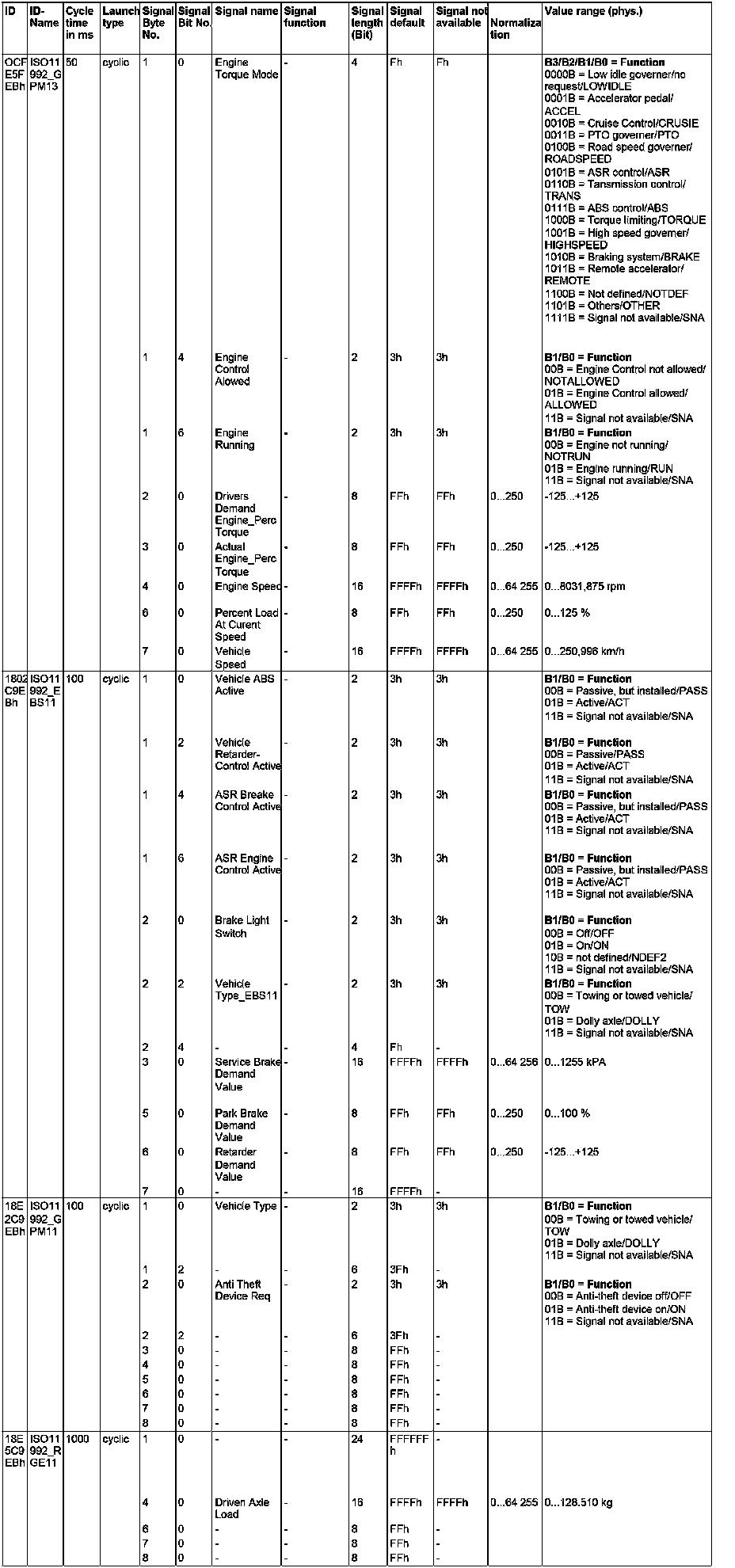

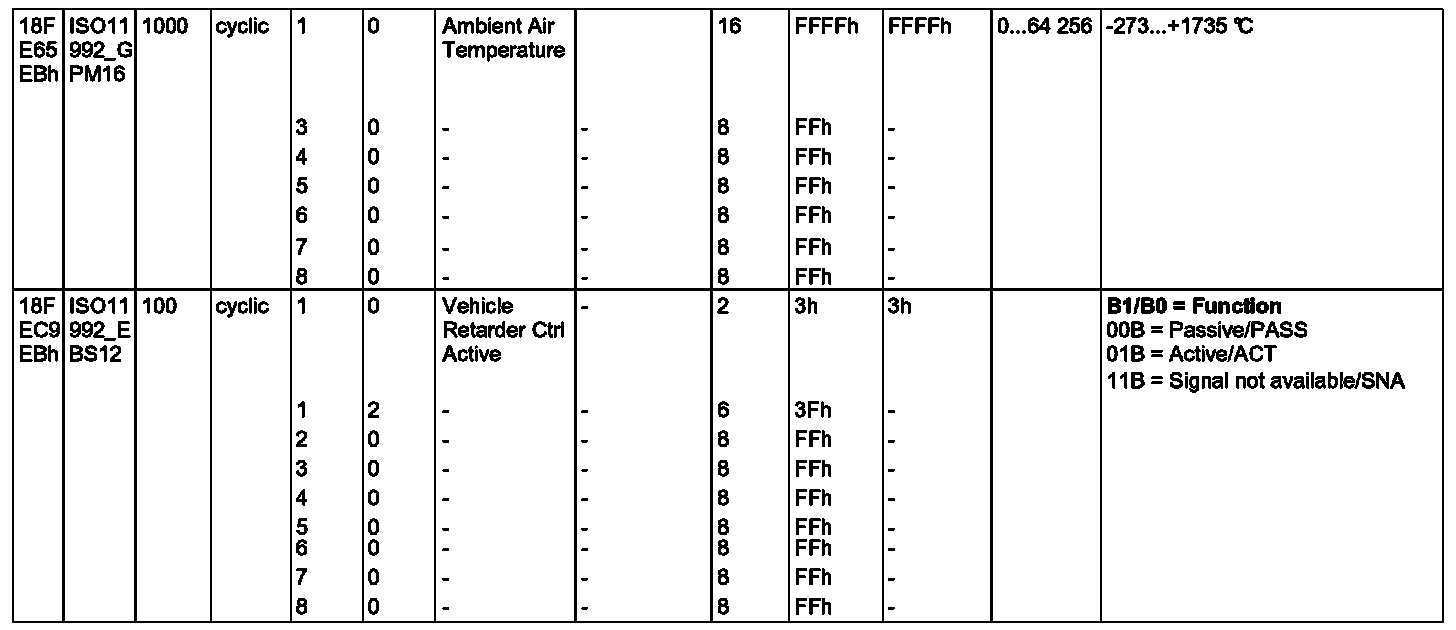

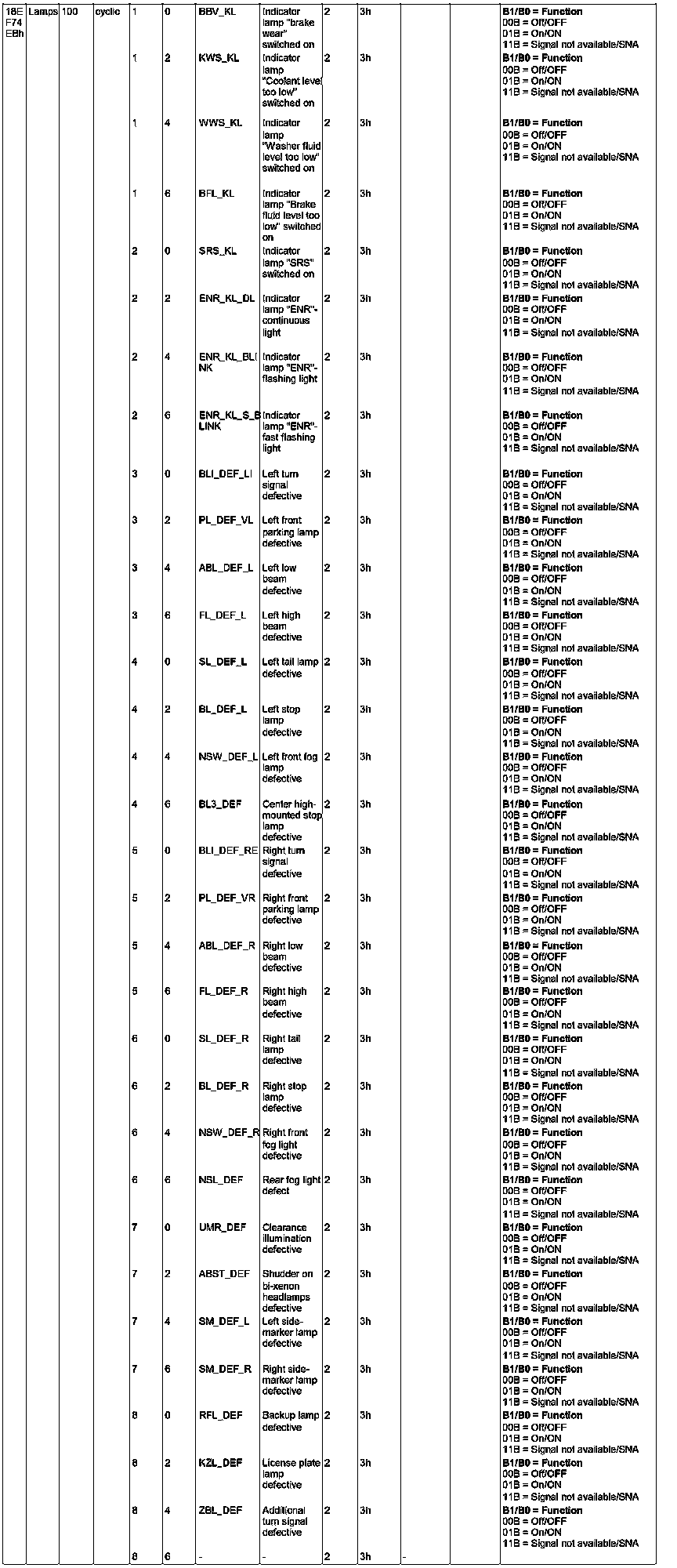

- with CODE (ED5) Parameterizable special module (PSM) Outgoing CAN signals, ISO 11992-2/3


- with CODE (ED8) Preinstallation for parameterizable special module (PSM) Outgoing CAN signals, ISO 11992-2/3
