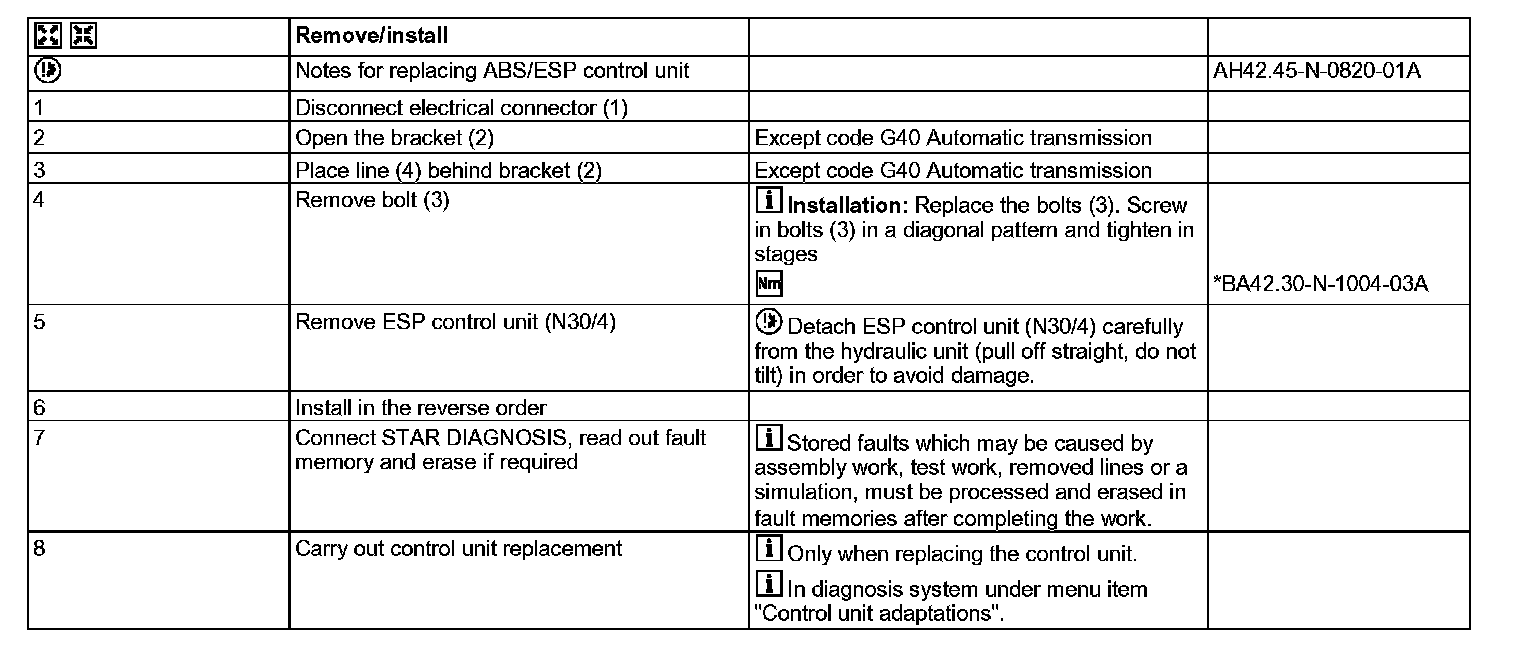

AR42.30-D-8550H Remove/Install ABS Control Unit




AR42.30-D-8550H Remove/Install ABS Control Unit

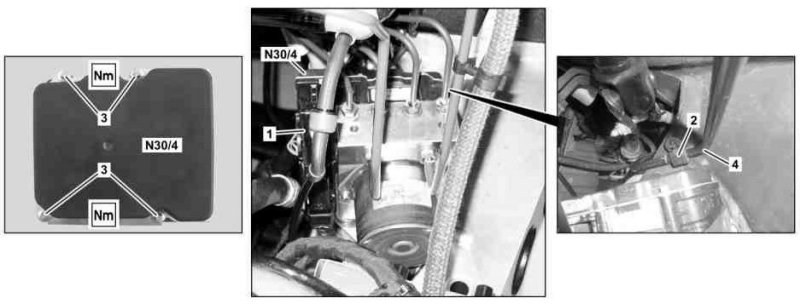

1 Electrical connector
2 Bracket
3 Bolts
4 Cable

N30/4 ESP control unit
