AR09.20-D-1315SG Remove/Install Intake Port Shutoff Sensor

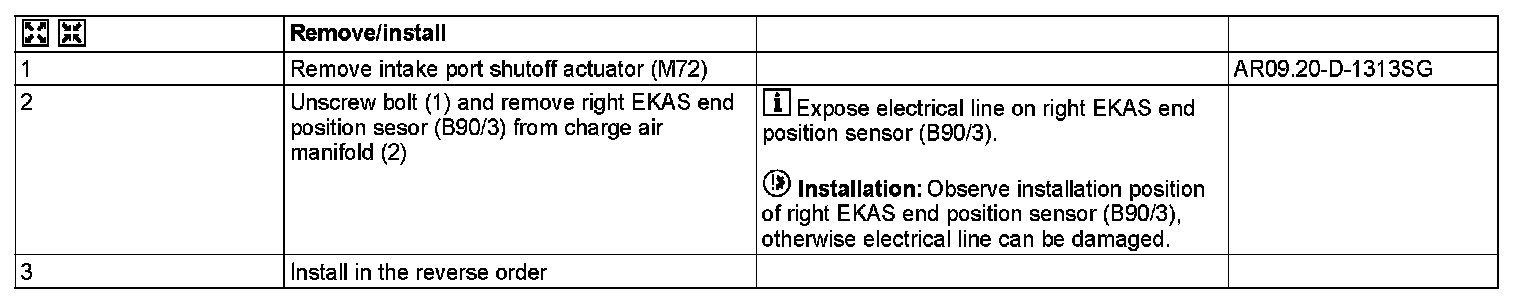

AR09.20-D-1315SG Remove/install Intake Port Shutoff Sensor

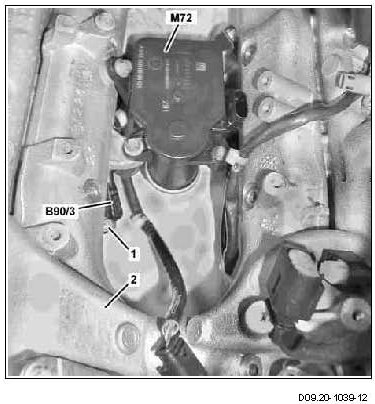

on right charge air manifold







1 Screw
2 Charge air manifold
B90/3 Right EKAS end position measurement sensor
M72 Inlet port shutoff positioner
