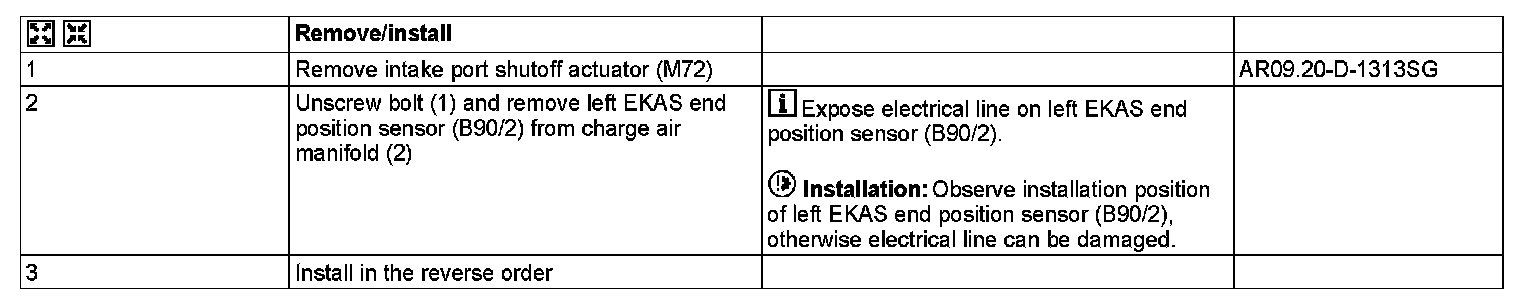

AR09.20-D-1315SF Remove/Install Intake Port Shutoff Sensor

AR09.20-D-1315SF Remove/install Intake Port Shutoff Sensor

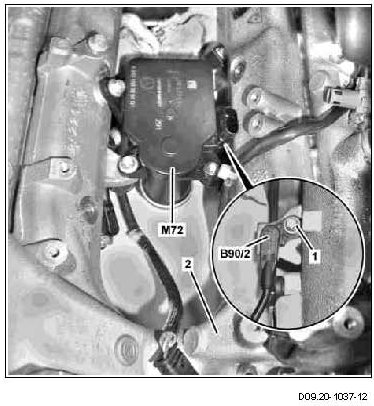

on left charge air manifold







1 Screw
2 Charge air manifold
B90/2 Left EKAS end position measurement sensor
M72 Inlet port shutoff positioner
