AR09.20-D-1313SG Remove/Install Intake Port Shutoff Actuator Motor

AR09.20-D-1313SG Remove/install Intake Port Shutoff Actuator Motor

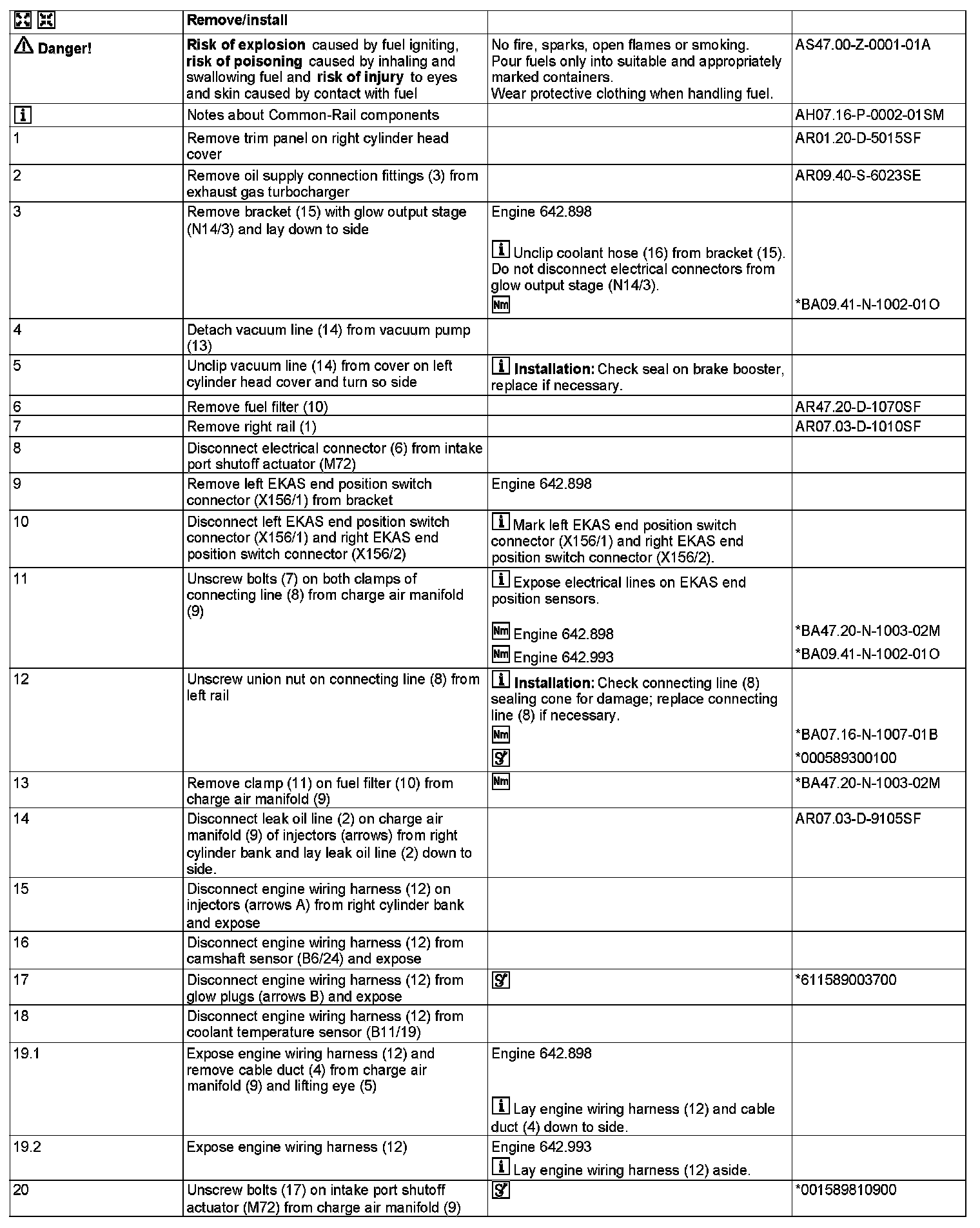

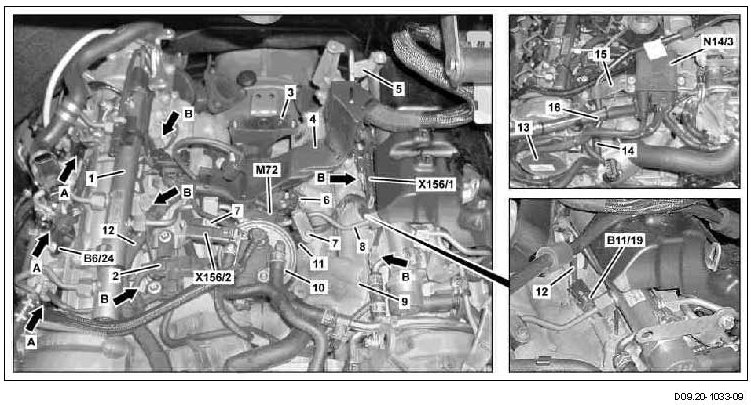

Shown on engine 642.898







1 Right rail
2 Leak oil line
3 Oil supply connection fitting
4 Line duct
5 Lifting eye
6 Electrical connector
7 Screw
8 Connecting line
9 Charge air manifold
10 Fuel filter
11 Hose clamp
12 Engine wiring harness
13 Vacuum pump
14 Vacuum line
15 Bracket
16 Coolant hose
B6/24 Camshaft sensor
B11/19 Coolant temperature sensor
M72 Inlet port shutoff positioner
N14/3 Glow output stage
X156/1 EKAS end position switch connector /left
X156/2 EKAS end position switch connector /right

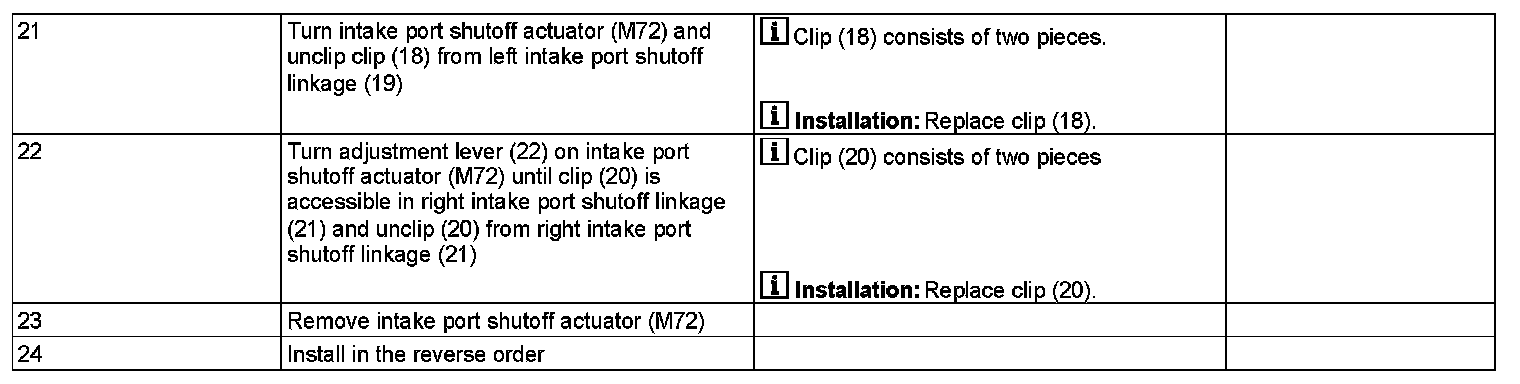

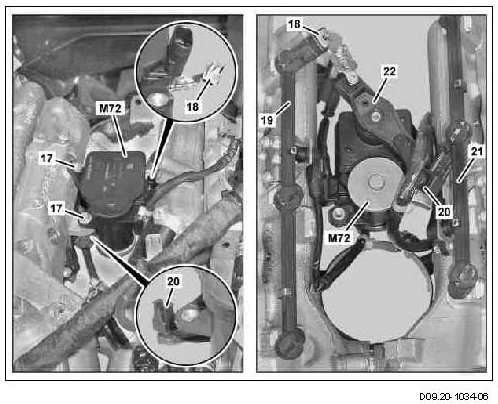

Shown on engine 642.898







17 Screw
18 Clip
19 Left intake port shutoff linkage
20 Clip
21 Right intake port shutoff linkage
22 Control lever
M72 Inlet port shutoff positioner























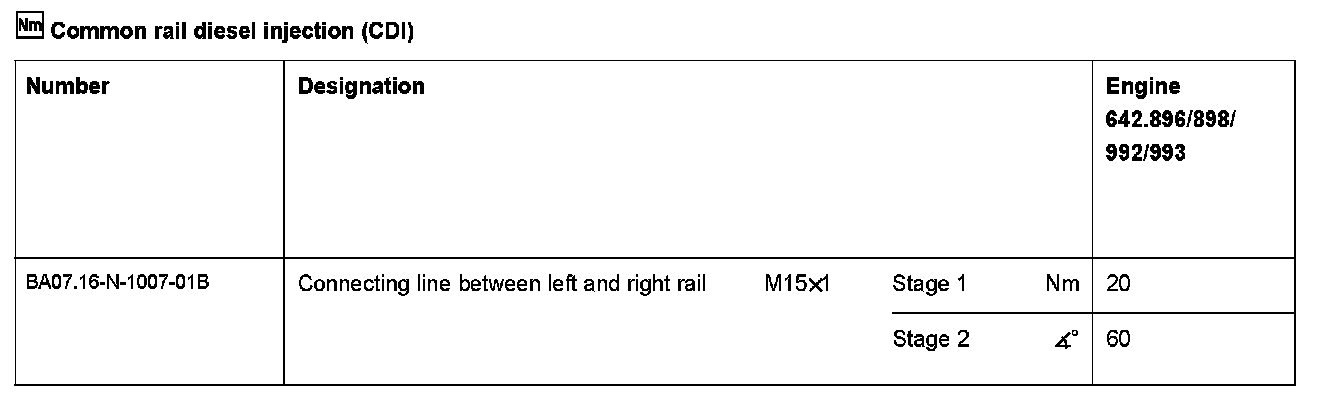

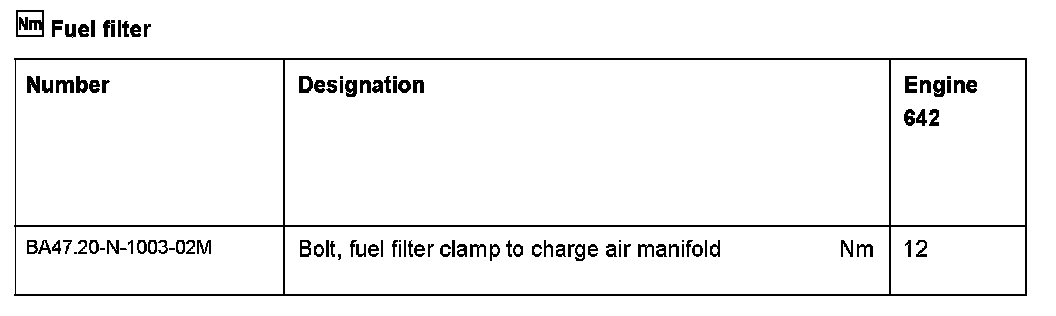

000 589 30 01 00, Open wrench insert, (18 mm)







001 589 81 09 00, Flexible head wrench set







611 589 00 37 00, Pliers
